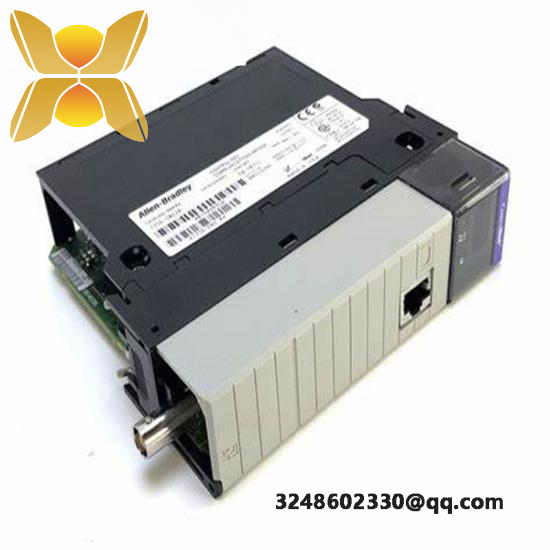

AB 1756-CN2 ControlLogix Communication Modules

Model Type:Redundant Communication Module

Model Number:1756-CN2

Manufacturer:Allen-Bradley

Number of Channels:2

Current Rating (Drawn):970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous)

Communication Speeds:10/100 Mbps

Communication Protocol:ControlNet A/B to Backplane

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900

Temperature Rating:0 – 60 DEG C

Power Dissipation:6.2 Watts

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity, Vibration: 2 G, Shock: 30 G

    The AB 1756-CN2 ControlLogix Communication Modules are designed to enhance productivity and efficiency in complex industrial settings. These modules provide robust connectivity options for ControlLogix systems, ensuring smooth operation and reliable data transmission.

    Equipped with advanced Ethernet/IP technology, these modules support high-speed communication, allowing for real-time data processing and control adjustments. They are compatible with a wide range of protocols, including CIP, facilitating interoperability across different automation networks.

    Compact and lightweight, the 1756-CN2 modules are easy to integrate into existing ControlLogix systems without compromising performance. They feature a durable design that withstands harsh industrial environments, ensuring longevity and reliability in demanding applications.

    These modules offer versatile port configurations, supporting multiple connections for diverse control tasks. Whether it’s coordinating with PLCs, HMIs, or other industrial devices, the AB 1756-CN2 ensures seamless integration and enhanced system performance.

    Designed with user convenience in mind, these modules come with intuitive setup processes and comprehensive documentation, making them accessible to both experienced engineers and those new to ControlLogix systems. They are a cost-effective solution for upgrading or expanding industrial automation infrastructure.
