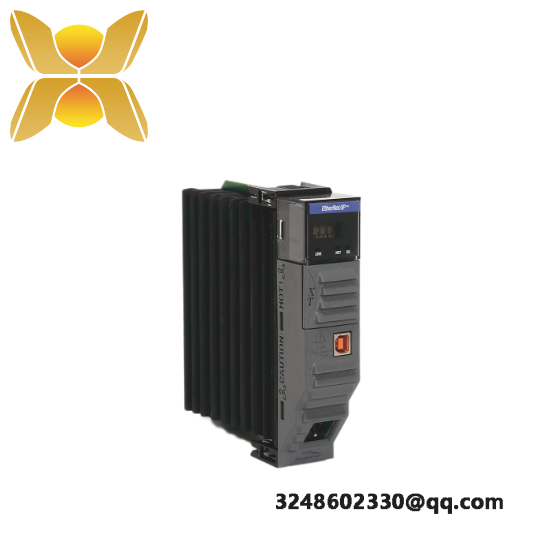

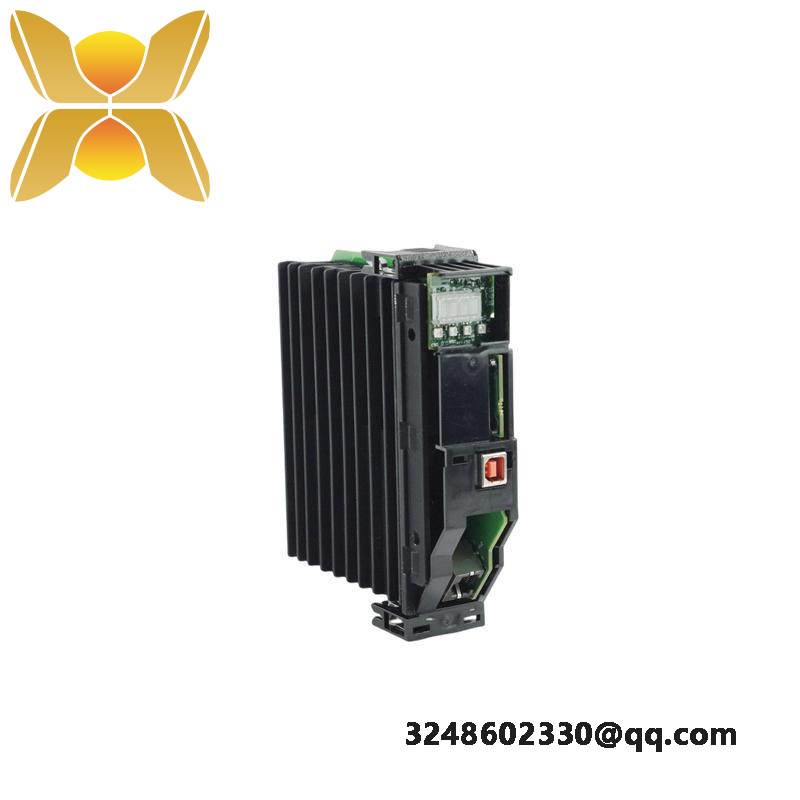

AB 1756-EN2TXT EtherNet/IP Bridge Module for Industrial Automation

Manufacturer:Allen Bradley

Model Number:1756EN2T

Communication Protocol:Ethernet/IP Bridge

Power Supply:3 mA at 24 VDC

Communication Speed:10/100 MBPS

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Relative Humidity Range:5 – 95% Non-Condensing

Vibration Tolerance:2 G

Shock Tolerance:30 G

Interface:Ethernet, USB Port

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

    The Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module is designed for seamless integration within industrial automation environments. With its robust communication protocols and high-speed data transfer capabilities, this module ensures efficient and reliable operation. Constructed with durable materials, it can withstand harsh industrial settings, making it ideal for applications requiring dependable network connectivity.

    Its advanced design includes an open-type enclosure that provides excellent protection against environmental factors like dust and moisture. This module supports both shielded and unshielded twisted pair cables, offering flexibility in installation options. Additionally, the Ethernet/IP Bridge functionality enables smooth interoperability with various network devices, enhancing overall system efficiency.

    With a wide operating temperature range from 0 to 60 degrees Celsius, this module can operate effectively in diverse climates. It also features a low power dissipation of 5.1 W, making it energy-efficient. The module is certified to withstand vibrations up to 2 G and shocks up to 30 G, ensuring longevity even in dynamic industrial environments.

    For easy setup and maintenance, the module includes Ethernet and USB ports, allowing for convenient configuration and monitoring. This makes it a valuable addition to any industrial automation setup, providing robust and reliable communication solutions.
