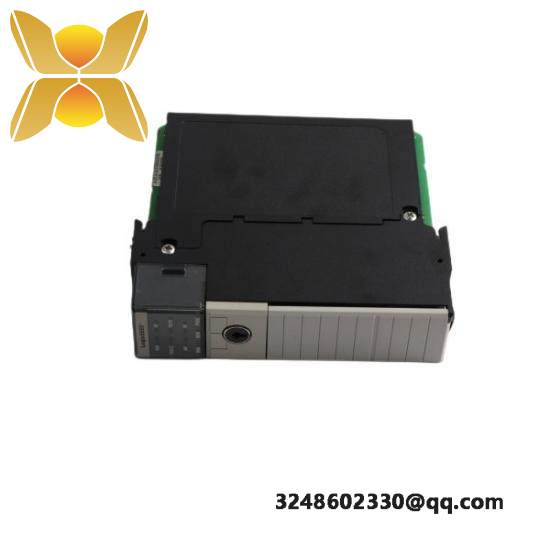

AB 1756-IFB ControlLogix 8 Point Analog Input/Output Module

Operating Voltage:DC 24V

Current Consumption:≤ 60mA

Signal Range:-10V to +10V

Sampling Rate:20 samples/sec

Operating Temperature:-20°C to +70°C

Reliability Rating:Class 1 Div 2, Zone 2

Communication Protocol:ControlNet, DeviceNet, EtherNet/IP

    The Allen-Bradley 1756-IFB ControlLogix 8-Point Analog Input Module is engineered to deliver accurate and efficient data acquisition, essential for the smooth operation of modern industrial control systems. This module boasts an impressive feature set designed to enhance productivity and reduce downtime.

    Featuring a choice of three data formats, this module can adapt to various applications within the industrial environment, ensuring compatibility with diverse control systems. Its capability to handle multiple current and voltage input ranges makes it a flexible addition to any system, capable of accommodating a wide variety of sensors.

    Equipped with advanced filtering options and real-time sampling technology, the 1756-IFB ensures high-quality data acquisition under varying conditions. The inclusion of fault detection mechanisms, including under range and over range detection, and process alarms enhances safety and reliability, preventing potential system failures before they occur.

    With wire-off detection, users are promptly notified of disconnected wires, minimizing errors and ensuring continuous operation. The integration of Highway Addressable Remote Transducer (HART) communication provides seamless connectivity between devices, enabling remote monitoring and configuration, which is invaluable in large-scale industrial settings.

    Designed with efficiency in mind, this module operates with low power consumption, making it suitable for energy-conscious applications. It’s a testament to Allen-Bradley’s commitment to delivering high-performance solutions without compromising on sustainability.
