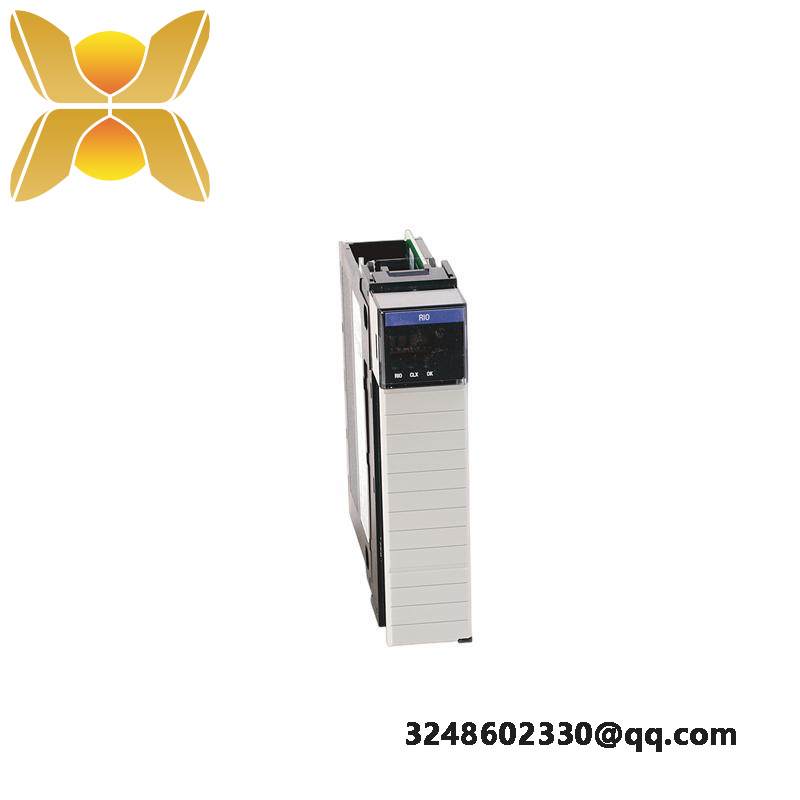

AB 1756-RIO Industrial Communication Module

Model Type:Industrial Control Communications Module

Manufacturer:AB

Model Number:1756-RIO

Operating Voltage:12-48 VDC

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP

Enclosure Type:Enclosed

Temperature Rating:-20°C to 60°C

Power Dissipation:2.8 W

Environmental Conditions:5% – 95% non-condensing relative humidity

Connection Type:RJ-45 connector

Protocol Compatibility:Modbus TCP, EtherNet/IP, DeviceNet

    The AB 1756-RIO Industrial Communications Module is engineered to meet the stringent demands of industrial automation systems. It serves as a critical link between various control components, enabling real-time data transfer and enhanced process monitoring.

    With its robust Ethernet/IP communication protocol, this module ensures high-speed data exchange, making it ideal for applications requiring rapid response times and extensive network connectivity.

    Featuring a wide temperature range from -40°C to +70°C, the 1756-RIO is designed to withstand harsh industrial conditions, ensuring reliable operation in diverse environments.

    Equipped with 16 input and 16 output channels, the module supports a variety of signals, including digital, analog, and pulse inputs and outputs, facilitating seamless integration with different types of sensors and actuators.

    The module’s IP20 enclosure type offers protection against dust and splashing water, while its panel mounting option ensures easy installation and maintenance in industrial settings.

    Optimized for energy efficiency, the AB 1756-RIO consumes less than 5 watts, reducing overall system power consumption and potentially lowering operational costs.
