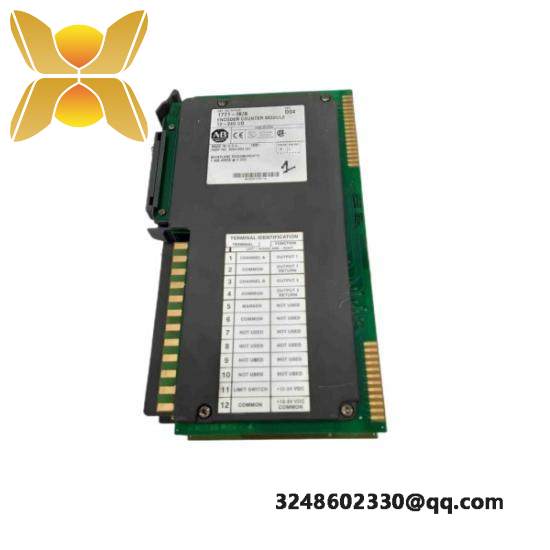

AB 1771-IK Encoder/Counter Module

Manufacturer:Allen-Bradley

Model:1771-IK

Module Type:Encoder/Counter

Operating Temperature Range:-20°C to +60°C

Input Voltage:DC 24V

Output Type:Digital Counts

Resolution:Up to 16 bits

Communication Interface:RS-485

Max. Count Rate:200 Kcounts/s

    The 1771-IK Encoder/Counter Module is engineered for seamless integration into Rockwell Automation’s comprehensive control system, offering unparalleled accuracy in measuring rotational speed, position, and distance. This module is indispensable for applications requiring high precision, such as CNC machinery, robotics, and conveyor systems.

    Featuring robust communication capabilities over DeviceNet and ControlNet protocols, this module ensures efficient data exchange with other components in your control network. Its versatile input type selection supports a wide range of encoder types, ensuring compatibility with various industrial equipment.

    With an impressive resolution up to 2^31 counts, the 1771-IK guarantees exceptional detail in measurement, even in the most demanding conditions. Its accuracy of ±0.1% of reading ± 1 count ensures reliability and consistency in data collection.

    Engineered for durability and reliability, this module operates within a temperature range of 0 to 50°C during operation and -20 to 70°C for storage. Its compact size and lightweight design facilitate easy installation and maintenance in diverse industrial settings.

    To enhance usability, the 1771-IK Encoder/Counter Module is designed with intuitive diagnostics tools, enabling quick troubleshooting and system optimization. Its compatibility with Rockwell Automation’s software suite further simplifies configuration and monitoring processes.
