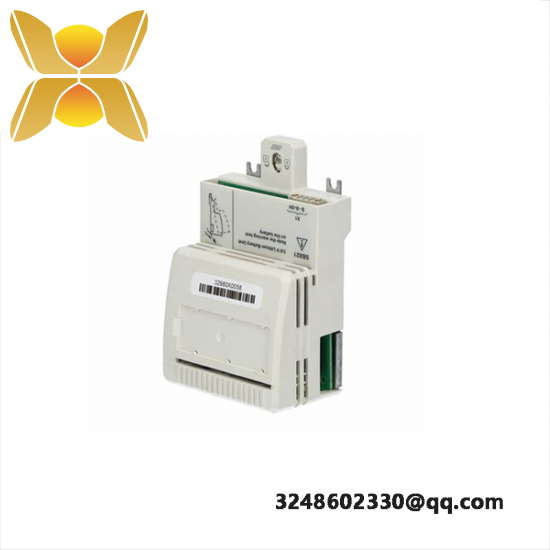

ABB 3BSE018293R1 Analog Output Board for Industrial Control Systems

Operating Voltage:24V DC

Current Output Range:0-20mA or 4-20mA

Accuracy:+/- 0.2% of full scale

Load Capacity:Max. 300 Ohms

Operating Temperature:-25°C to +85°C

Enclosure Rating:IP20

Dimensions:105mm x 97mm x 46mm

Connection Type:DIN rail mountable

Communication Protocol:Modbus RTU

    The ABB 3BSE018293R1 Analog Output Board is a key component in industrial automation, designed for applications requiring high precision control. Its compact size and robust design make it suitable for various industrial environments.

    Featuring a wide range of output current from 0 to 20 mA, this board ensures accurate control over actuators and sensors in manufacturing processes. Its compatibility with 0-10 V DC signals allows for seamless integration with various control systems.

    With support for RS485 Modbus RTU communication, the board enables efficient data exchange between different devices in an automated system, facilitating advanced monitoring and control capabilities.

    Operable within a temperature range of -20°C to +60°C, the board ensures reliable performance even in challenging industrial conditions. Its ability to withstand storage temperatures from -40°C to +85°C makes it ideal for long-term deployments.

    Crafted with durable materials, the ABB 3BSE018293R1 is built to withstand harsh environments, ensuring minimal maintenance requirements and extended operational life. Its dimensions of 144mm x 100mm x 68mm and lightweight design (0.3 kg) make it easy to integrate into existing systems without compromising on space.
