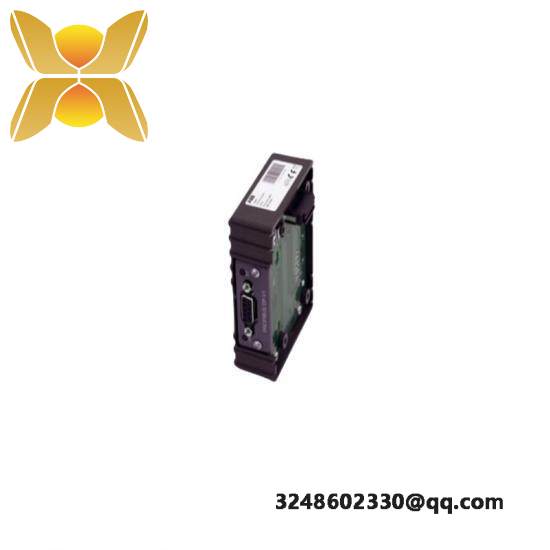

ABB CB801 3BSE042245R1 PROFIBUS DP Panel 800 Module

Manufacturer:ABB

Model Number:CB801 3BSE042245R1

Application:Industrial Automation Systems

Communication Protocol:PROFIBUS DP

Operating Temperature:-20°C to +60°C

Power Supply:12-24V DC

Dimensions (WxHxD):140mm x 100mm x 110mm

Connector Type:M12

Number of Channels:16

Communication Speed:1Mbps

Data Capacity:Up to 128 bytes per message

Protocol Compatibility:IEC 61158-2

    The ABB CB801 3BSE042245R1 PROFIBUS DP Panel 800 stands out as an indispensable component for modern industrial control systems. Designed for optimal performance, this module ensures efficient data exchange, making it ideal for diverse applications in manufacturing, process control, and automation sectors.

    Crafted with precision and durability, the module boasts an operating temperature range of -20°C to +60°C, ensuring reliability in harsh environments. With a data transfer rate of 1200 kbit/s and support for DC 24V input voltage, it guarantees smooth operation under varying conditions.

    Each channel offers a maximum output current of 100mA, providing ample power for connecting various devices and sensors. The RS485 communication interface facilitates robust data transmission over longer distances, enhancing system scalability and efficiency.

    Compact yet powerful, the dimensions of 15mm (W) x 35mm (H) x 94mm (D) make it easy to integrate into existing setups without compromising on space. Weighing approximately 0.1kg, it is lightweight and portable, adding to its versatility.

    Backed by ABB’s reputation for quality and innovation, the CB801 3BSE042245R1 PROFIBUS DP Panel 800 is a testament to reliability and performance. It is compatible with the latest industrial standards, ensuring compatibility with a wide array of automation equipment and software solutions.
