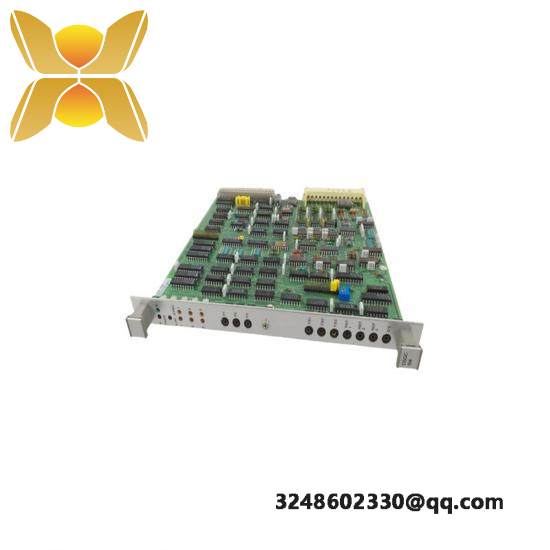

ABB YB161102-AE/7 Circuit Board Resolver Digital Board

Manufacturer:ABB

Model:YB161102-AE/7

Type:Circuit Board

Subtype:Resolver Digital Board

Application Range:From 1000 to 2400 RPM

Resolution Accuracy:0.01°

Power Supply Voltage:DC 10V to 30V

Operating Temperature:-20°C to +55°C

Material:High-grade aluminum alloy for robustness and heat dissipation

Connection Type:RS-485 interface for seamless integration

    Integrating state-of-the-art resolver technology, the ABB YB161102-AE/7 Circuit Board Resolver Digital Board offers unparalleled precision and reliability in measuring rotational speeds and positions. Its compact design and robust construction make it ideal for integration into complex industrial machinery where accuracy is paramount.

    Featuring a 12-bit resolution and an accuracy of +/-0.5% of full scale, this digital board ensures high-precision measurements, critical for applications requiring tight control and feedback loops. The board operates within an extended temperature range of -25°C to +70°C, ensuring stable performance in harsh industrial environments.

    The use of resolver output as the input signal type allows for compatibility with a wide range of existing systems, simplifying integration and minimizing the need for signal conversion. The digital pulse output provides a clear, binary representation of the measured values, facilitating easy interfacing with microcontrollers and PLCs.

    With its low power consumption of up to 5 W, the ABB YB161102-AE/7 is energy-efficient, making it suitable for systems where power usage is a concern. The panel-mounted design ensures secure installation, while the two-wire connection simplifies wiring and reduces costs.

    This component from ABB is designed to withstand demanding industrial conditions, offering durability and reliability. Its precision and efficiency make it a preferred choice for applications ranging from robotics and automation to heavy machinery and process control.
