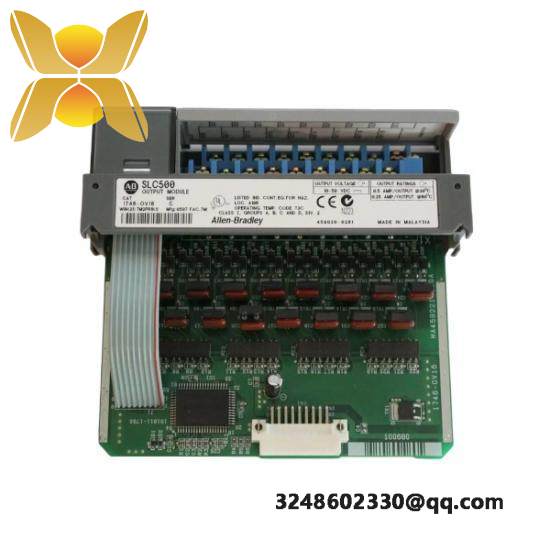

Allen-Bradley 1746-OV16 Digital Discrete Output Module

Product Model:1746-OV16

Type:Discrete Output Module

Series:SLC 500

Input Voltage:24 VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 VDC

Outputs:16; Sink

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 mA

Load:1 mA

Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60°C”,”Continuous Current Per Module”:”4 A at 60°C”}

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0-60°C

Environmental Conditions:5-95%

    The Allen-Bradley 1746-OV16 digital discrete output module is an essential component for any industrial control system. With its robust design and reliable performance, this module ensures smooth operation in demanding environments. Featuring 16 sink outputs, it can handle a wide range of loads, from simple indicators to complex machinery controls. Its compact size allows for easy integration into existing systems without requiring significant modifications. The module’s input voltage range of 10-50 VDC provides flexibility for various power supply setups, ensuring seamless compatibility across different applications. The backplane current consumption of 0.270 A and continuous current rating per output at 0.25 A make it a powerful choice for high-demand scenarios. Additionally, the isolation ratings of 500 VDC for communication circuits and 1500 VAC for the backplane offer superior protection against electrical interference, enhancing the overall reliability of your automation setup. This module is compatible with the SLC 500 processor series, providing a comprehensive solution for your industrial automation needs.
