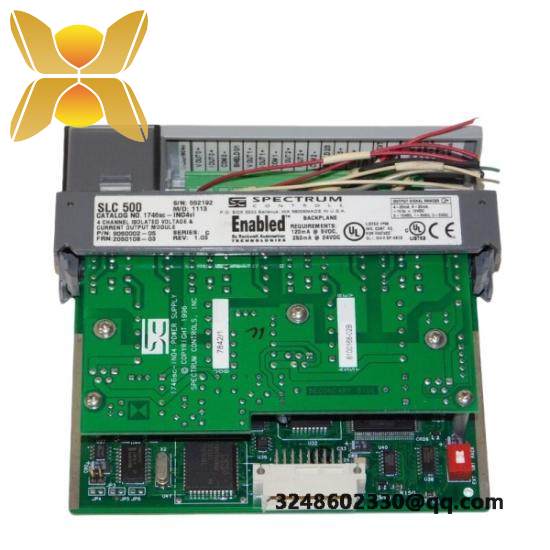

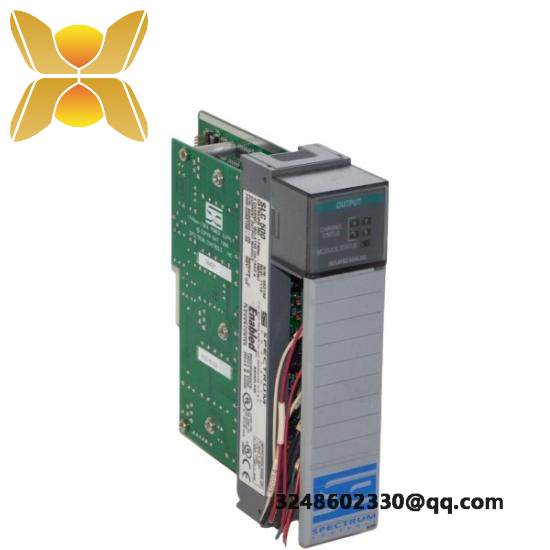

Allen-Bradley 1746SC-INO4vi | Allen-Bradley SLC 500 Analog Voltage Output Module

Model Type:High-Resolution Analog Input/Output Module

Number of Channels:4 Input / 4 Output

Common Mode Voltage Range (Input):-20 to 20 V

Absolute Input Voltage (Input):+/- 7.5 VDC or +/- 7.5 VAC RMS (Max.)

Input Range (Current):-20 to 20 mA

Output Range (Voltage):0 to 20 mA

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Backplane Current Draw:35 MA at 5 V, 85 MA at 24 V

Dimensions:Standard 6U DIN Rail Mount

Operating Temperature:-20°C to 70°C

Operating Humidity:0% to 95% non-condensing

    Engineered for industrial-grade performance, the Allen-Bradley 1746SC-INO4vi ensures reliable operation in harsh environments.

    Featuring high-resolution analog inputs and outputs, this module accurately measures and controls signals within your automation system.

    Its compact design allows for easy integration into existing control systems, enhancing efficiency and reducing installation time.

    With a wide temperature and humidity range compatibility, the 1746SC-INO4vi is suitable for diverse industrial applications worldwide.

    The module supports seamless data exchange through its DB25 connector, ensuring compatibility with various control network protocols.
