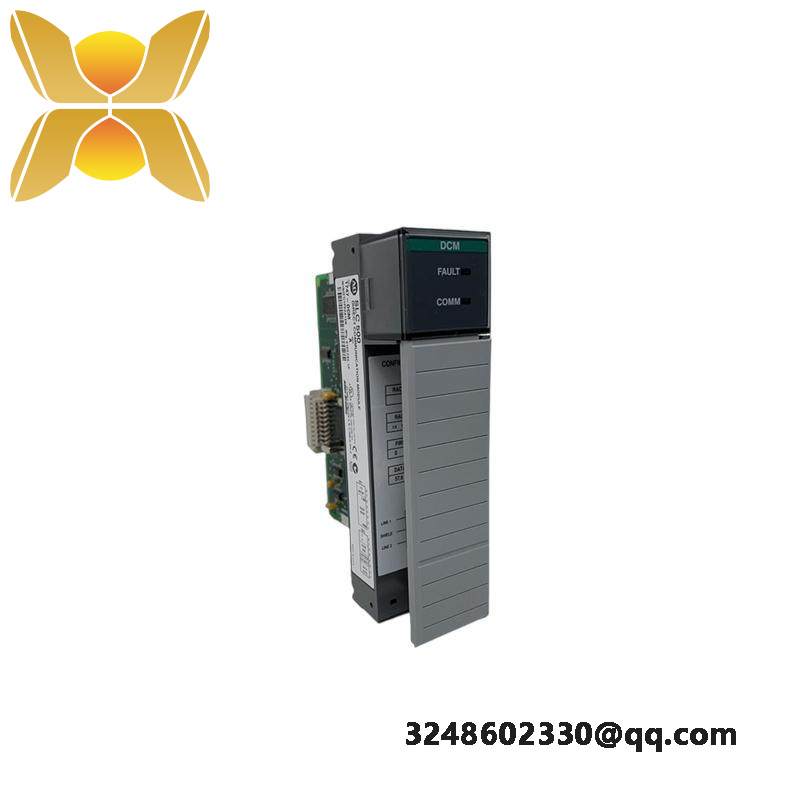

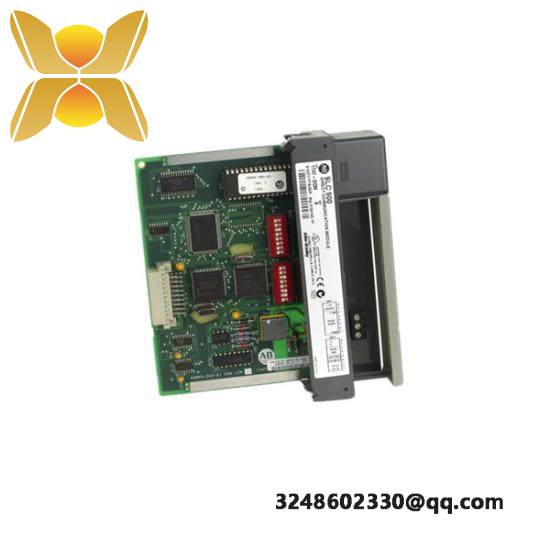

Allen-Bradley 1747-DCM Digital Control Module

Manufacturer:Allen-Bradley

Model:1747-DCM

Category:Digital Communication Module

Compatibility:Compatible with Allen-Bradley ControlLogix series controllers

Data Rate:Up to 10 Mbps

Operating Voltage:24 VDC

Power Consumption:1 W

Weight:0.2 kg

Dimensions:85 mm x 125 mm x 38 mm

Certifications:CE, UL, CSA

    The Allen-Bradley 1747-DCM Digital Input Module is designed for seamless integration into existing Allen-Bradley PLC systems, enhancing overall system performance and reliability. This robust module supports up to 16 digital input channels, making it ideal for complex industrial automation scenarios. With a response time of less than 1 millisecond, it ensures swift signal conversion, contributing to efficient data processing.

    Built to withstand harsh industrial conditions, the 1747-DCM features a NEMA 4X / IP66 rating, ensuring protection against dust, water, and other environmental factors. Its operating temperature range spans from -25°C to +60°C, offering versatility across different environments. Furthermore, the module’s storage temperature range allows it to be stored at extreme temperatures without affecting its performance.

    Installation of the 1747-DCM is straightforward, with clear wiring diagrams provided in the user manual to assist in setting up the module correctly. The module also includes LED indicators for each channel, providing immediate feedback on signal status, which simplifies troubleshooting and maintenance tasks.
