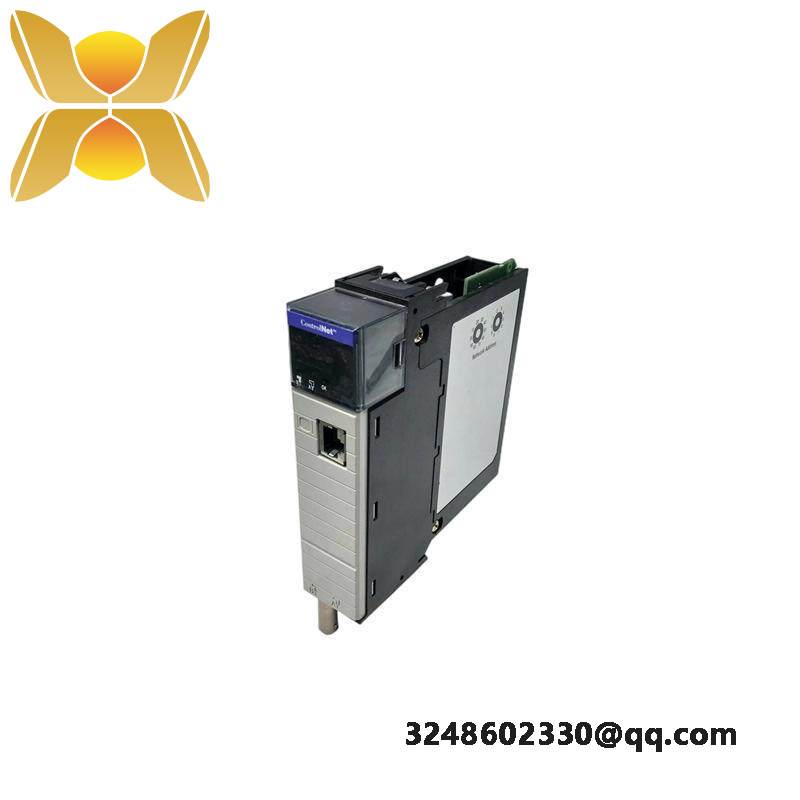

Allen Bradley 1756-CNBR Redundant Bridge Module: ControlNet Communication Innovation

Model Type:Communication Bridge Module

Model Number:1756-CNBR

Manufacturer:Allen Bradley

Communication Protocol:ControlNet

Redundancy:Yes

Connectors:1 ControlNet BNC connector, 1 NAP RJ-45 8-pin with shield connector

Communication Rate:5 Mbps

Series😀

Enclosure Type:Open

RFI Suppression:Radiated: 10 V/M at 1 KHZ Sine-Wave 80% AM from 80-2000 MHz, Conducted: 10 VRMS at 1 KHZ Sine-Wave 80% AM from 150 KHZ – 80 MHz

Temperature Range:Operating: -40°C to +70°C, Storage: -55°C to +85°C

    The Allen Bradley 1756-CNBR Redundant Bridge Module is designed for unparalleled reliability in industrial environments, offering a robust solution for ControlNet network integration.

    Featuring dual redundant pathways, this module ensures continuous operation even under unexpected failures, enhancing system uptime and efficiency.

    Equipped with advanced RFI suppression technology, it effectively mitigates interference across a wide frequency range, ensuring stable data transmission.

    With its compact design and open-type enclosure, the 1756-CNBR is easy to integrate into various industrial setups, minimizing installation complexity.

    This module supports a communication rate of 5 Mbps, providing fast and efficient data transfer capabilities essential for modern automation systems.

    Ideal for applications requiring high reliability and redundancy, such as manufacturing lines, power plants, and process control systems, the Allen Bradley 1756-CNBR is a key component for achieving seamless network connectivity in industrial settings.
