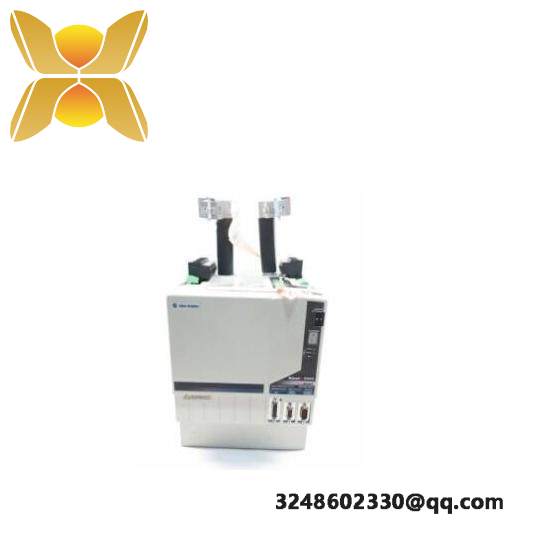

Allen-Bradley 2094-BC07-M05-M Integrated Axis Module

Dimensions:7.7 x 11.9 x 16.7 inches (196 x 302 x 426 mm)

Weight:22.0 lbs (9.98 kg)

Output Current:45 Amperes

Nominal Drive Voltage:360-480 Volts (3 Phase)

Wattage:22 kWatts

Input Voltage Range:324-528V rms, 3-phase

Input Frequency Range:47-63 Hz

Main AC Input Current:71.0 Ampere nominal, 62.2 Ampere inrush

DC Input Voltage for Common Bus Follower:458-747V DC

Safety Feature:Safe Torque-off

Series Availability:Standard, Standard or Peak Enhanced, and Peak Enhanced options

Operating Temperature:0…50 °C (32…122 °F)

Relative Humidity:5…95% noncondensing

Operating Altitude:Similar to other Kinetix modules, with derating for 1000 m (3281 ft) and 3000 m (9843 ft)

    This module is a high-performance converter designed for seamless integration into complex industrial automation setups. It delivers superior torque capabilities and ensures precise control over mechanical systems.

    With an extensive voltage range of 360-480VAC and a robust frequency tolerance of 47-63 Hz, it caters to a wide array of applications, enhancing operational flexibility and reliability.

    Featuring an impressive 45A output current, this module is engineered to handle demanding loads efficiently, ensuring smooth operation even under high stress conditions.

    The inclusion of a comprehensive set of connectors, including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD) connectors, facilitates easy setup and maintenance.

    Integrated with a variety of safety features, such as Safe Torque-off, it provides an additional layer of security, safeguarding personnel and equipment against unexpected power surges or malfunctions.
