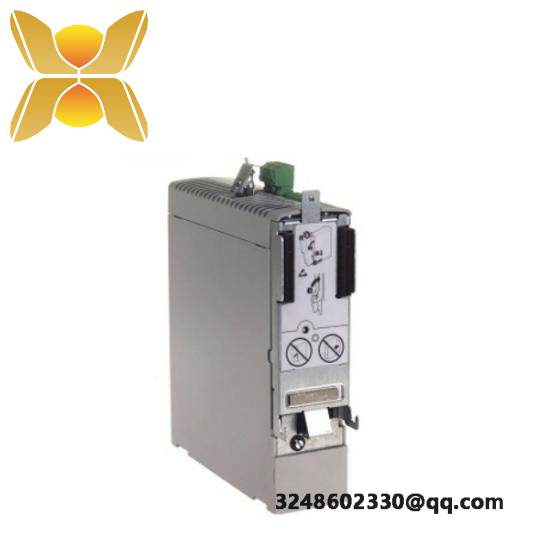

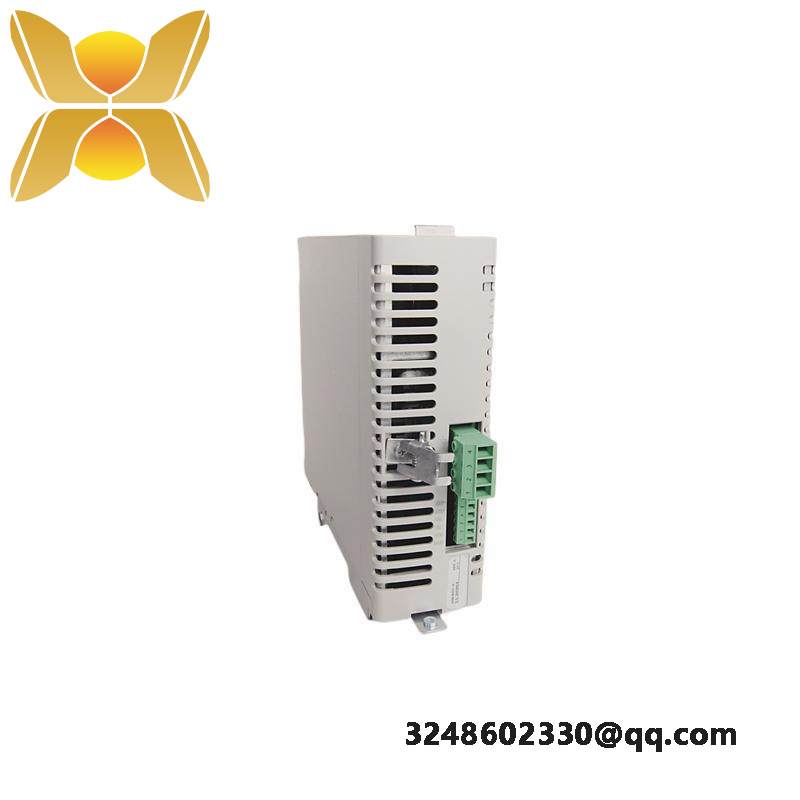

Allen-Bradley 2094-BM01-S Axis Module for Kinetix 6000 Multi-Axis Drive System

Brand:Allen-Bradley

Model:2094-BM01-S

Module Type:Axis Module

Input Voltage:324-528V RMS, 3-phase

Nominal Voltage:360/480V

Nominal Input Voltage:650V DC

Continuous Output Current:6.1 A

Peak Output Current:8.6 A

Continuous Output Power:3.9 kW

Efficiency:98%

Internal Shunt Peak Power:5.6 kW

Internal Shunt Continuous Power:50 W

Power Dissipation:57-126 Watts

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

PWM Frequency:8 kHz

Capacitance:150 μF

Continuous Current (RMS):6.1 A

Continuous Current (0-peak):8.6 A

Internal Shunt Resistor:115 Ω

Heat Dissipation:N/A

Weight:N/A

    The Allen-Bradley 2094-BM01-S is an integral part of the Kinetix 6000 Multi-Axis Drive Servo system, designed to enhance machine performance and productivity. With its robust design and advanced safety features, this module ensures reliable and efficient operation in industrial environments.

    This axis module supports up to seven (7) for each 8-axis power rail, making it ideal for multi-axis applications. It operates with a wide input voltage range of 324-528V rms, 3-phase, ensuring flexibility and compatibility with various industrial systems.

    Safety is a top priority with the 2094-BM01-S, featuring an integrated Safe Torque Off (STO) function that complies with Safety Integrity Level (SIL) 3 and Performance Level (PLe). This ensures personnel protection and minimizes downtime due to unexpected faults.

    The module’s high efficiency of 98% and low heat dissipation of 57-126 Watts make it energy-efficient and cost-effective, reducing operational costs and improving overall machine performance. Its robust design and reliable operation make it suitable for demanding industrial applications.

    With a continuous output power of 3.9 kW and peak current ratings of 8.6 A, the 2094-BM01-S delivers consistent and powerful performance, meeting the demands of modern industrial automation.
