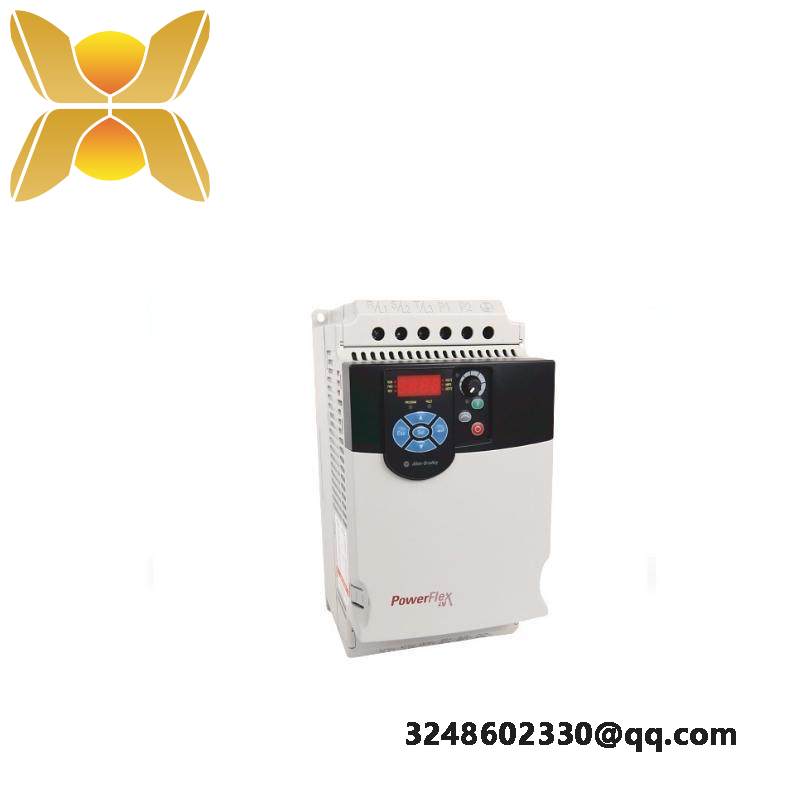

Allen-Bradley AB 22F-D018N104 AC Drive – Precision Control Solutions for Industrial Applications

Motor Control Technology:Advanced Vector Control

Rated Power:18.5 kW / 25 HP

Voltage Range:380-480 VAC

Frequency:40-60 Hz

Operating Temperature:-10°C to +50°C

Protection Class:IP54 (Front Panel), IP20 (Enclosure)

Network Compatibility:Modbus TCP/IP, Ethernet/IP

Control Interfaces:Full Numeric Display, Enhanced Control Module

Safety Standards:UL 508A, CE, CSA C22.2 No. 149

    The Allen-Bradley AB 22F-D018N104 AC Drive is engineered to deliver exceptional performance, featuring a full numeric LCD interface that provides real-time monitoring and control over the drive’s operation. This ensures precise adjustments are made, enhancing process efficiency and productivity.

    Built with a durable front flange mount design, this drive is IP 54 rated for protection against dust and splashing water, ensuring reliable operation in harsh industrial environments. The front chassis adheres to IP 20 standards, offering adequate protection while maintaining accessibility.

    The AC Drive supports a wide voltage range of 480V AC, allowing flexibility in various electrical systems. Its 3-phase capability ensures compatibility with diverse motor configurations, maximizing energy efficiency and reducing operational costs.

    Equipped with ControlNet (Coax) compatibility, this drive seamlessly integrates with other industrial devices, facilitating a smart factory environment where data exchange is streamlined for optimized production lines. This connectivity feature supports real-time diagnostics and predictive maintenance, enhancing system reliability and uptime.

    With a focus on safety and reliability, the Allen-Bradley AB 22F-D018N104 AC Drive incorporates robust braking technology, specifically DC injection, which ensures smooth deceleration and prevents overshoot during stoppage, protecting both the drive and the connected equipment.
