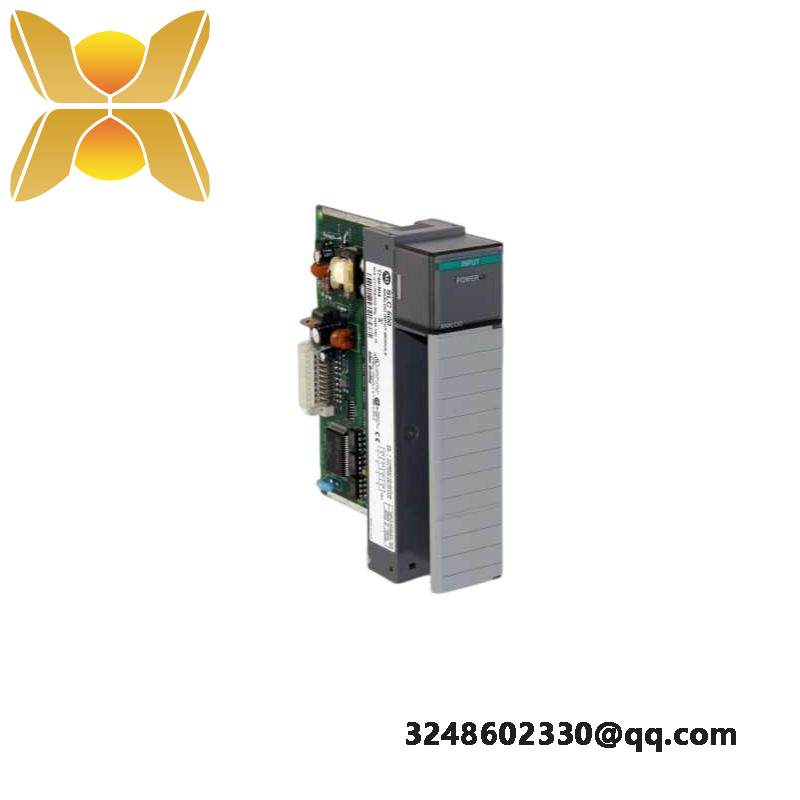

AllenBradley AB 1746-NI4/A SLC 500 Analog Input Module

Model Type:SLC 500

Model Number:1746-NI4/A

Manufacturer:Allen Bradley

Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-10 To 10 VDC – 1 LSB

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    Discover unparalleled accuracy in data collection with the Allen Bradley AB 1746-NI4/A SLC 500 Analog Input Module. Designed for robust performance in demanding industrial environments, this module ensures reliable and precise measurements across a wide range of applications.

    Featuring four high-resolution channels, it provides an exceptional balance between versatility and precision, making it ideal for applications requiring meticulous monitoring and control.

    With a common mode voltage range of -20 to 20 V, it can handle a broad spectrum of signal inputs, ensuring compatibility with various industrial standards and protocols.

    The module supports both DC and AC input voltage sources, with absolute input voltages ranging from plus or minus 7.5 VDC or 7.5 VAC RMS, maximizing its adaptability in different operational scenarios.

    Capable of handling input currents from -30 to 30 mA, it ensures smooth operation even under fluctuating conditions, making it a dependable choice for complex industrial processes.

    Experience peace of mind with overvoltage protection at 7.5 VAC RMS, safeguarding your system against unexpected voltage spikes. The Allen Bradley AB 1746-NI4/A SLC 500 Analog Input Module is engineered to deliver exceptional performance and reliability, enhancing your operational efficiency and productivity.
