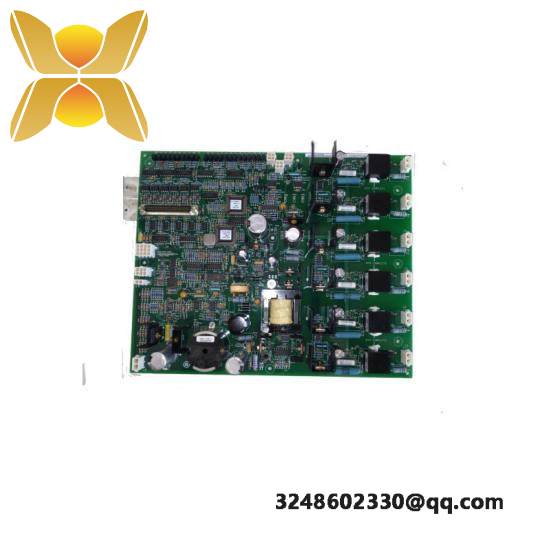

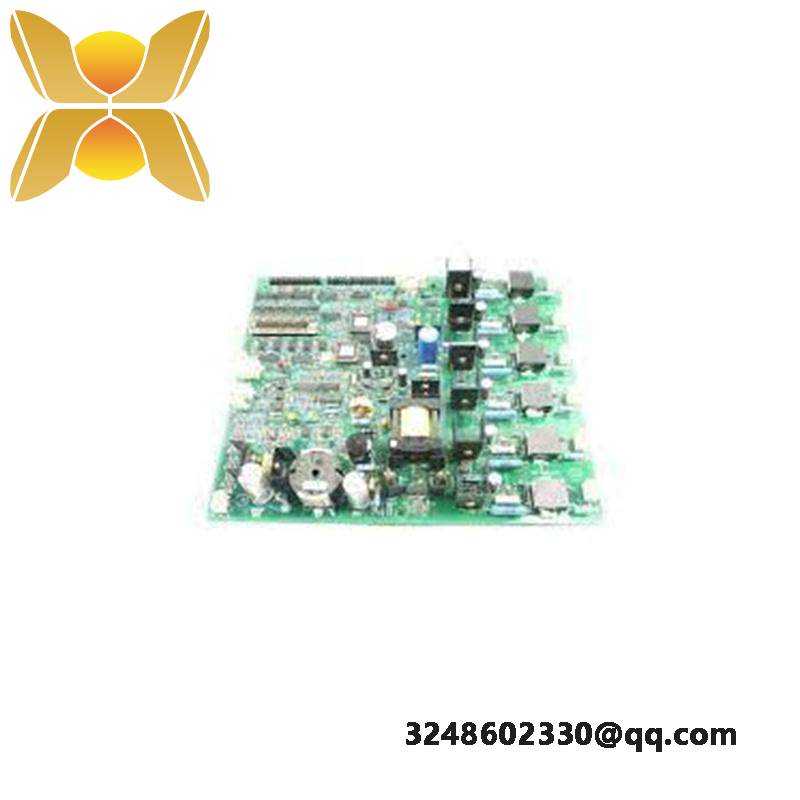

GE IS200EGPAG1BEC Exciter Gate Pulse Amplifier, A GE Industrial Systems Product

In stock

The GE IS200EGPAG1BEC Exciter Gate Pulse Amplifier is designed for use in EX2100 Excitation Control Systems. It serves as a critical interface between the control system and the power bridge, enabling precise management of SCR gate pulses.

Manufacturer:General Electric, GE Industrial Systems

Series:EX2100

Part Number:IS200EGPAG1BEC

Functional Acronym:EGPA

Functional Description:Gate Pulse Amplifier

PCB Coating:Normal Coating

Functional Revision:1 B

Artwork Revision:C

Weight:1 lbs 9 oz

On-board Jumpers:5

Notable Components:On-board Green and Red LED Indicators

The IS200EGPAG1BEC is a highly specialized component designed for the EX2100 Excitation Control Series by GE Industrial Systems. As a Gate Pulse Amplifier, it plays a pivotal role in controlling the excitation system within industrial control applications. This board interfaces directly with the Power Bridge and SCRs, ensuring precise control over the excitation process. It also provides critical feedback mechanisms for conduction, airflow, and temperature monitoring, which are vital for maintaining optimal performance and safety standards. With its on-board LED indicators, users can easily monitor the board’s operational status, enhancing troubleshooting capabilities. The ability to configure hardware through on-board jumpers adds flexibility to the board’s application across various industrial settings. Despite being discontinued, this model remains available in surplus stock, making it an excellent choice for those requiring reliable, legacy GE components for their systems.

GE IS200EGPAG1BEC
