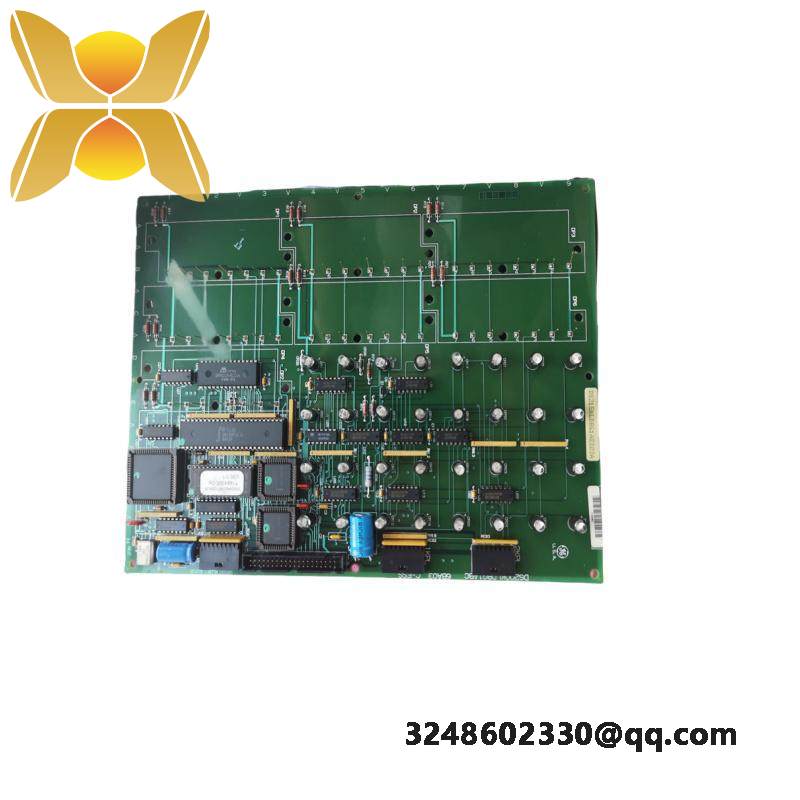

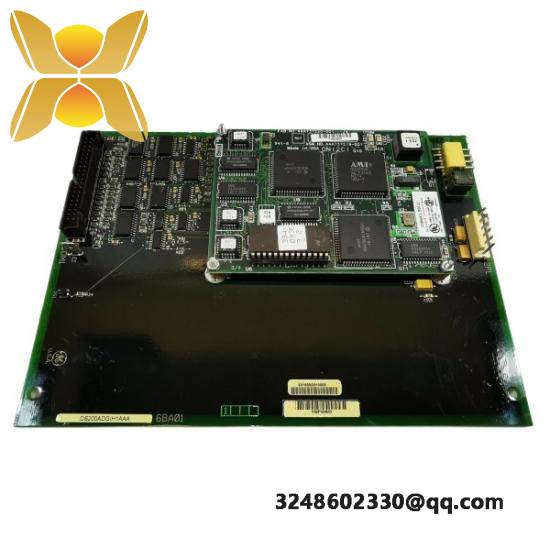

General Electric DS200ADGIH1AAA, High-Performance Auxiliary Interface Board for Mark V Series Turbine Control Systems

Width:8 inches

Length:6 inches

Connector Type:1x 40-pin connector, 1x 6-pin connector

Jumper Count:60 jumpers

Test Points:Multiple test points available

Weight:Not specified in documentation

Installation Location:Board cabinet of the drive

Screws:4 alignment screws

    The GE DS200ADGIH1AAA auxiliary interface board is an integral component of the Mark V turbine control system series. Its design focuses on providing seamless integration between different hardware components, ensuring optimal performance and reliability. This board is equipped with a 40-pin connector and a 6-pin connector, along with 60 jumper settings, allowing for versatile configuration options. With dimensions of 8 inches in width and 6 inches in length, it is compact and space-efficient, making it ideal for installation in the board cabinet. The board is designed to align perfectly with the existing Mark V series assembly, ensuring compatibility and ease of installation. Additionally, the board includes multiple test points for troubleshooting and maintenance, enhancing its durability and longevity. The GE DS200ADGIH1AAA is built to meet the rigorous demands of industrial control systems, providing reliable performance and seamless integration within complex machinery.
