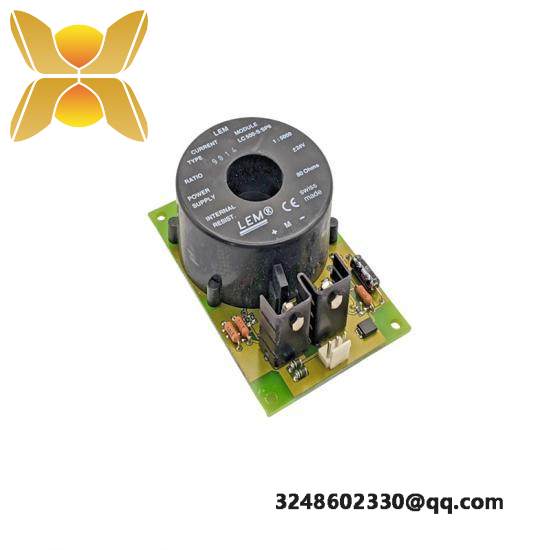

LEM LC1000-S/SP7 – High Precision Current Sensor Module

Sensor Type:Current Sensor

Model:LC1000-S/SP7

Sensitivity:1000 A/V

Accuracy:±0.5% of reading ±2 μA

Response Time:≤ 1 ms

Frequency Range:DC to 20 kHz

Output Signal:Analog Output

Operating Temperature:-40°C to +85°C

Power Supply:10 to 30 V DC

Dimensions:85 mm x 65 mm x 25 mm

Weight:0.3 kg

    The LEM LC1000-S/SP7 is an advanced current sensor module designed for demanding industrial environments. This sensor leverages the Hall Effect technology to provide highly accurate measurements with a wide measurement range of ±1000 A. Its response time is less than 1 microsecond, making it ideal for real-time monitoring applications. The sensor operates within a broad temperature range from -40°C to +85°C, ensuring reliable performance even under extreme conditions. Equipped with a 5 VDC supply voltage, the LEM LC1000-S/SP7 delivers an analog output signal, offering a maximum output impedance of 50 ohms. The insulation voltage rating of ≥4 kV DC guarantees robust isolation between the sensor and the surrounding environment. With its precise measurements and durable design, the LEM LC1000-S/SP7 is perfect for power distribution systems, renewable energy installations, and other industrial automation solutions.
