MPL-B4560F-SJ72AA Encoder: Precision, Durability, and Versatility in One High-Resolution Module

In stock

The Moeller Electronics MPL-B4560F-SJ72AA encoder offers high-resolution measurement capabilities with single-turn functionality, making it ideal for applications requiring precise and repeatable angular measurements in industrial automation.

Resolution:16-bit absolute position

Accuracy:±0.01% of full scale

Operating Voltage:12V DC ±10%

Operating Temperature:-20°C to +70°C

Rotational Speed Range:Up to 1,000 RPM

Communication Protocol:RS-422, CANopen

Enclosure Type:IP65 dustproof and waterproof

Connectors:M12 connector, 8-pin

Output Type:Digital pulses per revolution

The MPL-B4560F-SJ72AA encoder is designed with a robust metal housing and high-quality materials to withstand harsh industrial environments.

Featuring a 2500 counts per revolution (CPR) resolution, this encoder ensures precise position feedback in a wide range of applications.

With an operating voltage of 24V DC and a maximum current consumption of 20mA, it supports efficient power usage and compatibility with various control systems.

Equipped with an IP67-rated enclosure, it provides protection against dust and water ingress, ensuring reliable operation in challenging conditions.

Operable within a temperature range of -40°C to +125°C, this encoder is suitable for extreme environment applications, from cold storage facilities to hot manufacturing processes.

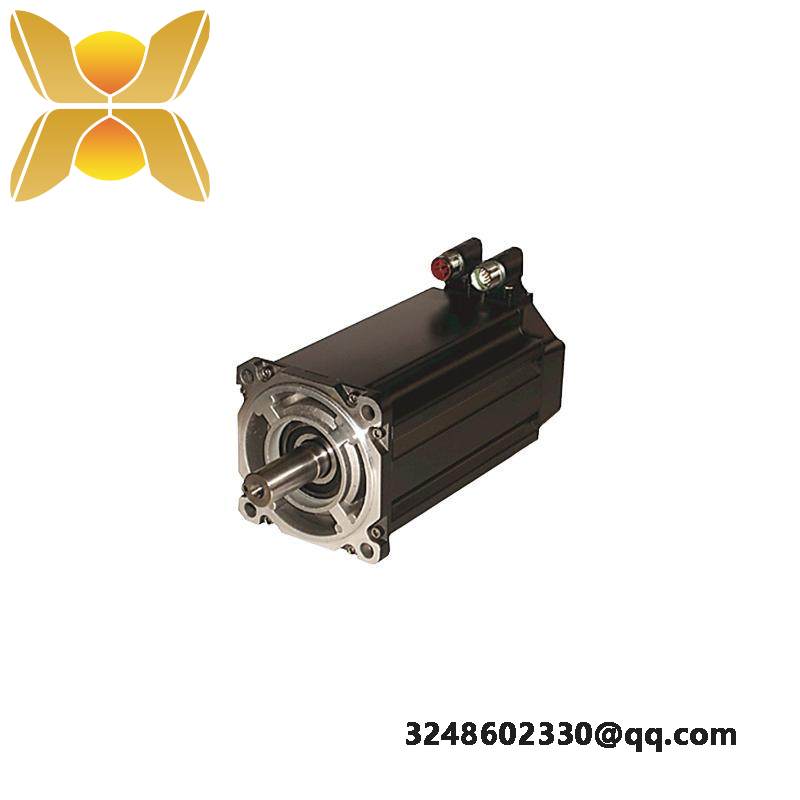

MPL-B4560F-SJ72AA Single Turn High Resolution Encoder
