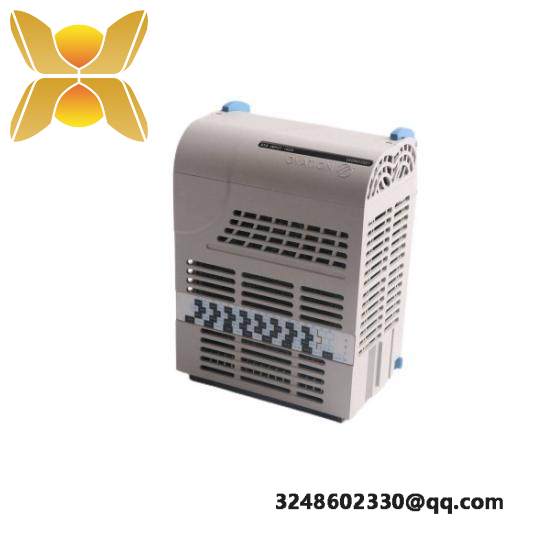

Ovation 5X00622G01: 16 Channel RTD Input Module, for Precise Temperature Control

Input Channels:16

Resistance Temperature Detection (RTD):Supports Pt100, Pt500, Pt1000, Cu50

Operating Voltage:24V DC

Power Consumption:≤ 2W

Signal Processing:12-bit ADC

Temperature Measurement Range:-200°C to +850°C

Accuracy:+/- 0.1% + 2LSB

Dimensions:105mm x 94mm x 35mm

Weight:150g

Environmental Rating:IP65

Communication Interface:RS-485 Modbus RTU

    The Ovation 5X00622G01 RTD input module is engineered for high accuracy and reliability in industrial temperature sensing. It features 16 independent channels, each capable of measuring resistance changes from RTDs over a wide range of temperatures, making it suitable for a multitude of industrial settings.

    With its robust design and wide operating temperature range, this module ensures stable performance in extreme environments. Its 250 Ohm input impedance is optimized for compatibility with a variety of RTD sensors, ensuring precise data collection.

    Designed with an efficient power consumption of ≤ 5 W, the Ovation 5X00622G01 minimizes energy use while maintaining high performance standards. Its compact size and terminal block connection facilitate easy integration into existing control systems.

    Featuring a ±0.05% + 2LSB accuracy, this module delivers highly precise temperature readings, essential for critical applications where even minor variations can impact operational outcomes. This level of precision is achieved through advanced signal processing techniques and quality materials.

    The Ovation 5X00622G01 comes equipped with a 24 VDC supply, providing the necessary power for accurate temperature measurement. Its storage and operational temperature ranges ensure durability and longevity in various industrial climates, from cold storage facilities to hot manufacturing processes.
