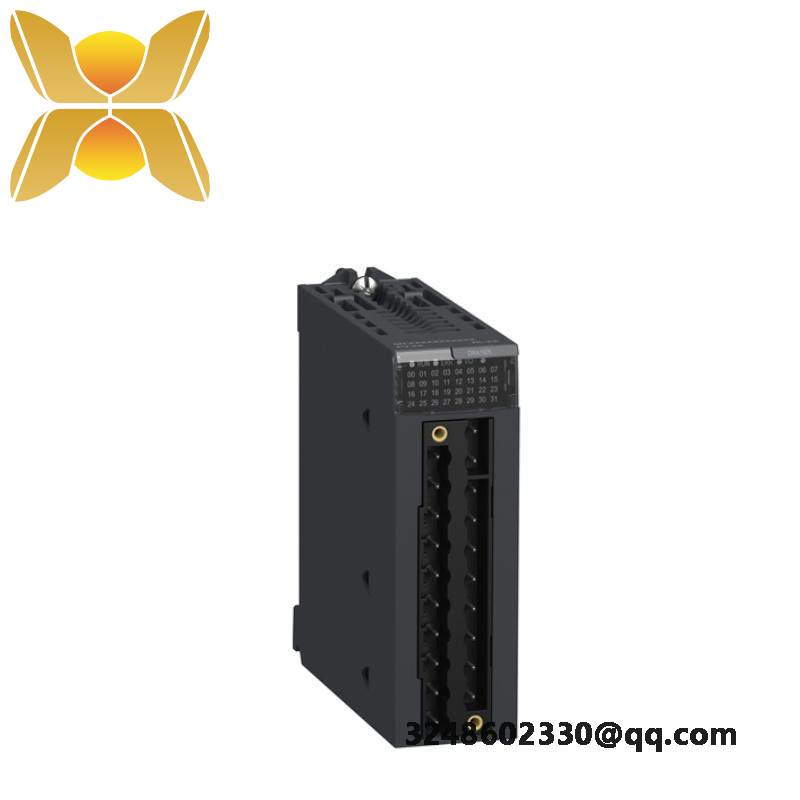

Schneider BMXDRA1605 Discrete Output Module: Advanced Control for Industrial Automation

Operating Voltage:24VDC

Number of Channels:16

Output Type:SPST

Response Time:≤ 10ms

Operating Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

Certifications:CE, UL, CSA

    The Schneider BMXDRA1605 discrete output module is a key component in any industrial automation system, designed to provide seamless integration and enhanced performance. It offers a robust solution for applications requiring precise digital signal control, ensuring reliability and efficiency in diverse manufacturing processes.

    With its wide operating temperature range from -25°C to +60°C, this module is suitable for use in harsh industrial environments, making it a versatile choice for global applications. Its compact design, measuring only 100mm x 100mm x 96mm, ensures efficient use of space on control panels or within industrial machinery.

    Featuring 16 discrete output channels, the Schneider BMXDRA1605 allows for the control of multiple actuators or devices simultaneously, significantly enhancing the productivity and responsiveness of automated systems. Each channel supports up to 1A load current, enabling the handling of high-power loads without compromising performance.

    The module is equipped with a DC 24V supply voltage, which is widely compatible with various industrial equipment. Its communication protocol, Modbus RTU, facilitates easy integration with existing automation systems, streamlining the setup process and minimizing installation time.

    For optimal performance, the input voltage range of DC 12V to 24V ensures compatibility with a broad spectrum of power sources commonly found in industrial settings. Additionally, the Schneider BMXDRA1605’s durable construction and IP20 protection rating make it resistant to dust and light splashes, further enhancing its reliability in demanding environments.
