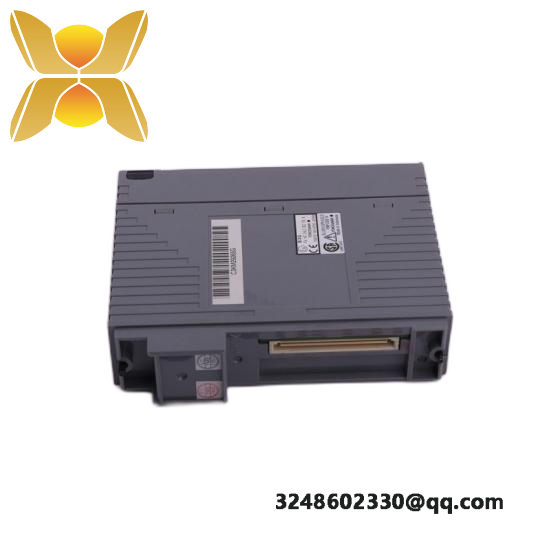

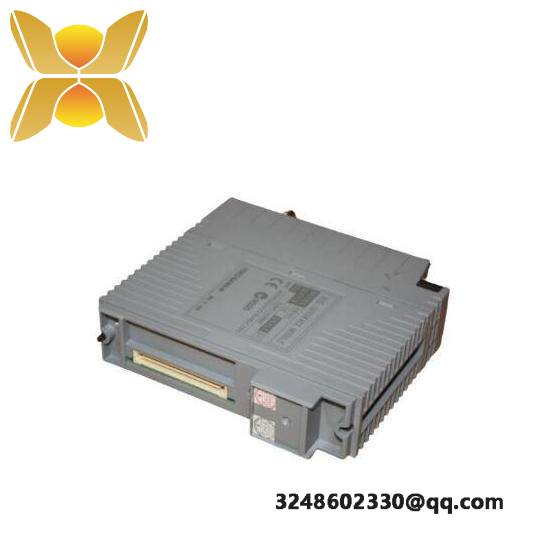

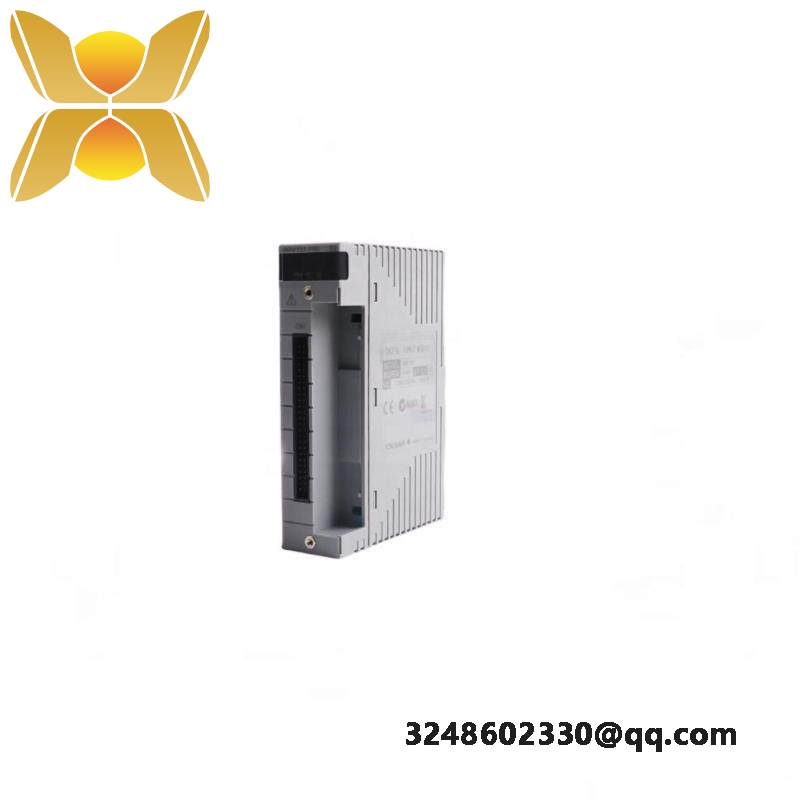

YOKOGAWA F3NC02-0N Positioning Module with Analog Voltage Output

Startup Time:6 ms max.

Control Output:-10 to 10 V

Data Backup:Backup using the CPU module

External Contact Output:Servo on, driver reset and brake off

Encoder Type:Incremental encoder (phase A/B)

Max Frequency:2 Mpps max.

Multiplication Mode:4-time multiplication mode

Control System:Semi-closed loop control based on encoder feedback

Input Channels:Limit switch, driver alarm, home position

    The YOKOGAWA F3NC02-0N is an essential component for industrial automation systems requiring precise positioning and control. Its semi-closed loop control system ensures high accuracy and reliability, making it ideal for various applications such as robotics, manufacturing machinery, and process control systems. With a maximum startup time of just 6 milliseconds, this module offers lightning-fast response times, ensuring smooth and efficient operation. The module’s velocity control output ranges from -10 to 10 volts, providing a wide range of control options. Additionally, the F3NC02-0N supports data backup through its CPU module, ensuring continuous operation even in the event of unexpected power interruptions. The external contact outputs include servo on, driver reset, and brake off functions, offering comprehensive control over the entire system. The encoder type can be either absolute or incremental (phase A/B), providing flexibility in system design and configuration.
