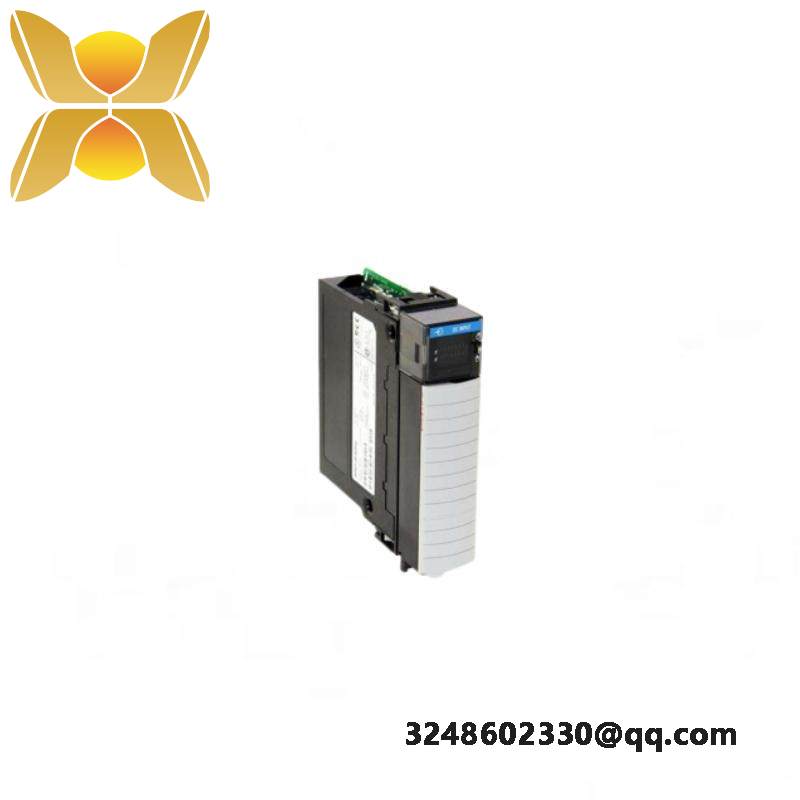

AB 1756-IG16 | Digital DC Input Module – Precision Control for Industrial Automation

Input Channel:16

Signal Type:Digital DC

Operating Voltage Range:12 to 36VDC

Current Consumption:Maximum 5mA per channel

Operating Temperature:-40°C to +85°C

Power Supply Requirement:12VDC

Dimensions:112.8mm x 90.7mm x 132.1mm

Weight:0.5kg

    The Allen-Bradley 1756-IG16 Digital DC Input Module is engineered to meet the demands of modern industrial environments. Its robust design ensures reliability and durability in harsh conditions, making it an ideal choice for applications requiring precise digital signal processing.

    Featuring 16 digital inputs, this module is capable of accurately converting a wide range of DC voltage levels into digital signals that can be interpreted by a ControlLogix PLC. This facilitates seamless integration into existing automation systems, enhancing operational efficiency.

    Designed with a wide operating temperature range of -20°C to 60°C, the 1756-IG16 is suitable for use in diverse industrial settings where environmental conditions may vary significantly.

    The module’s DIN rail mountable design allows for easy installation and integration within a ControlLogix system without compromising on space efficiency. This makes it a versatile component for both new installations and retrofits.

    Built to Allen-Bradley’s rigorous standards, the 1756-IG16 Digital DC Input Module is compatible with the entire ControlLogix architecture, ensuring compatibility and interoperability with other Allen-Bradley components. It supports seamless communication, enabling complex automation tasks and improving overall system performance.
