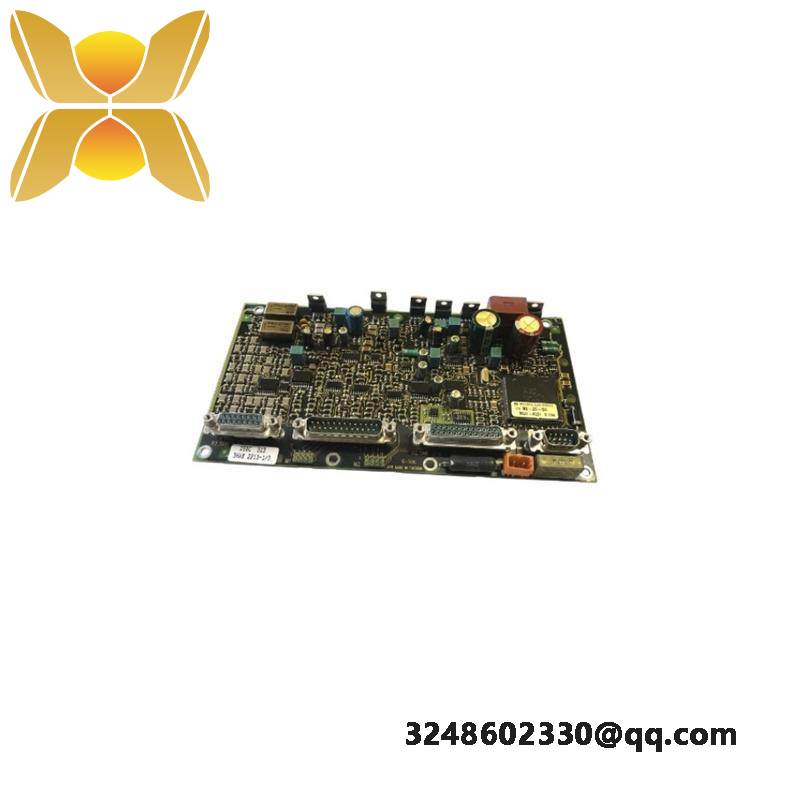

ABB SMB DSQC 313 – High-Precision Measurement Board for Industrial Automation

Board Type:SMB DSQC 313

Model:3HAB2213-1 3HNP00773-001/00

Technology:Advanced digital signal processing

Channels:16 analog input channels

Sampling Rate:Up to 2 kHz

Voltage Range:±10V

Current Range:±20mA

Communication Interface:RS-485

Power Supply:DC 24V

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    The ABB SMB DSQC 313 Measurement Meß Board is engineered for seamless integration into complex industrial control systems. It excels in delivering high-precision analog signal processing, making it ideal for a wide range of applications requiring accurate data acquisition.

    Featuring four high-quality analog inputs and two outputs, this board enables the collection and transmission of critical data with unparalleled reliability. Its robust design withstands harsh industrial environments, ensuring consistent performance under various conditions.

    Equipped with a sampling rate of 20 kHz, the DSQC 313 ensures rapid and accurate data capture, essential for real-time process monitoring and control. The board supports DC 24V operation, providing flexibility in system design and power management.

    Compact yet powerful, the Measurement Meß Board measures 140mm x 90mm x 30mm, facilitating easy installation in tight spaces. Weighing only 0.15 kg, it minimizes the load on your system infrastructure while maximizing efficiency.

    Designed with user-friendliness in mind, the DSQC 313 is compatible with ABB‘s advanced automation software, simplifying setup, configuration, and maintenance. Its comprehensive documentation and support resources ensure quick integration and minimal downtime.
