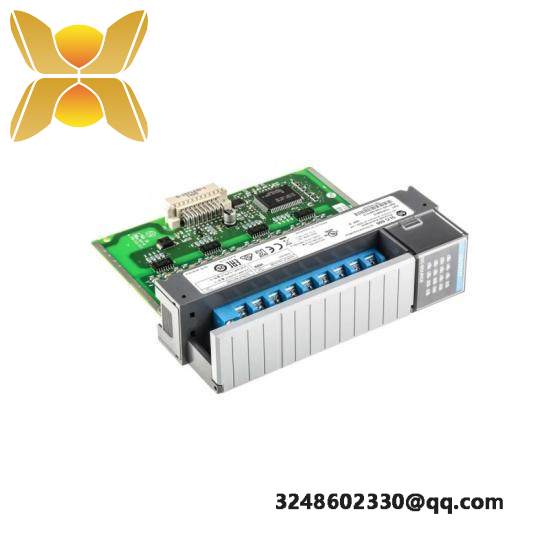

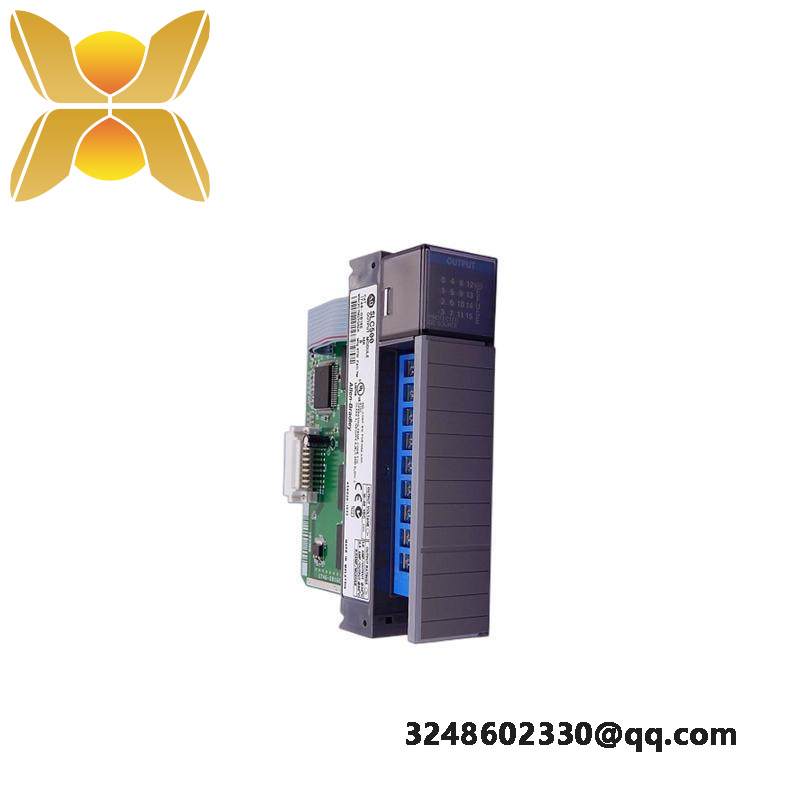

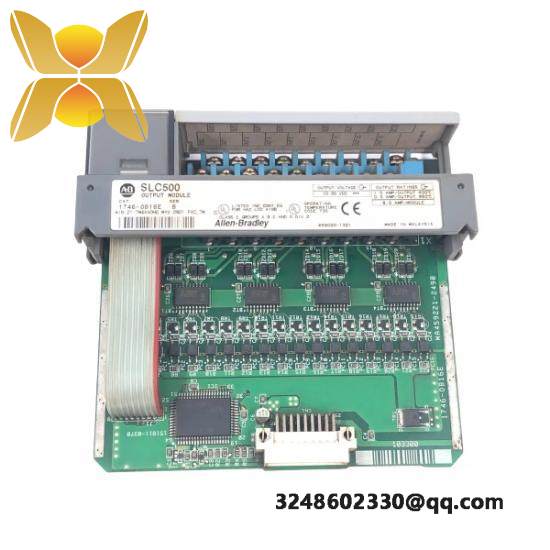

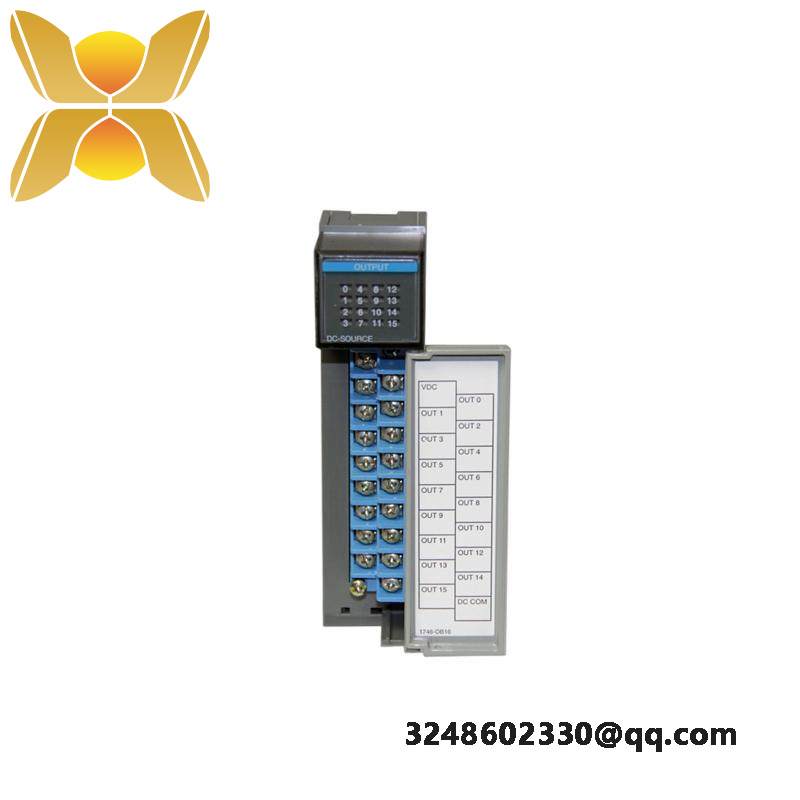

Allen-Bradley 1746-OB16 Digital DC Output Module

Model Type:SLC500

Model Number:1746-OB16

Manufacturer:Allen Bradley

Number Of Channels:16

Input:24 VDC

Output:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60 DEG C”,”Continuous Current Per Module”:”4 A at 60 DEG C”}

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

    The Allen-Bradley 1746-OB16 Digital DC Output Module is an essential component for industrial control systems.

     Designed for reliability and efficiency, this module provides 16 channels of digital DC output, enabling seamless integration into various automation setups.

     With its robust design, the module ensures stable performance under demanding environmental conditions.

     The open-type enclosure and chassis mounting make it easy to integrate into existing systems.

     Operating within a temperature range of 0 – 60 DEG C and humidity levels of 5 – 95%, this module is suitable for a wide range of industrial applications.

     The high current ratings and isolation features ensure safe and efficient operation, making it a reliable choice for control engineers and system integrators.
