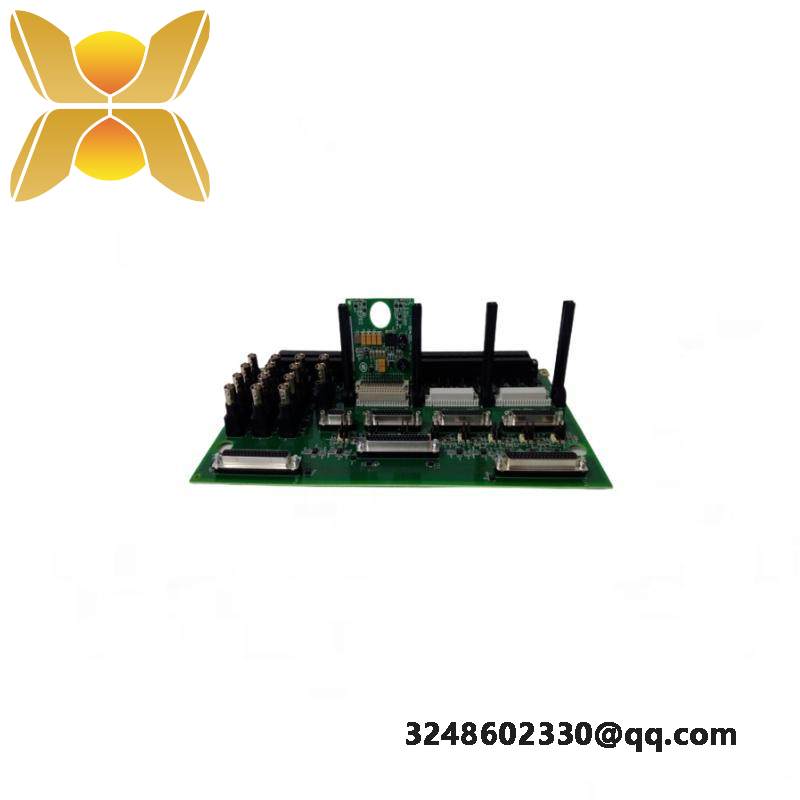

GE IS200AEPCH1ABC: Precision Engineered Control Board for Steam and Gas Turbines

Model Type:Control Board

Product ID:IS200AEPCH1ABC

Manufactured By:General Electric

Series:Speedtronic Mark VI

Designation:Small rectangular card without faceplate

Body Dimensions:Not specified

Weight:Not specified

Material:Circuit board material

Connectivity:Multiple connection points including female connectors, FPGA, and other integrated circuits

Power Supply:Not specified

Barcodes:Two attached to the surface

Auxiliary Card:Mounted, populated with components

Code Markings:DCOM, FA/00

Screw Connections:Through standoffs for mounting auxiliary card

    The GE IS200AEPCH1ABC is a compact yet powerful control board specifically engineered for the Speedtronic Mark VI system. It is designed with a small rectangular form factor, which ensures minimal footprint in industrial control environments.

    Featuring a robust construction, the board is meticulously crafted with a focus on durability and longevity, ensuring it can withstand the rigorous demands of industrial operations.

    With factory-drilled holes and conductive materials ringed around them, the board is optimized for ease of installation and maintenance, allowing technicians to quickly integrate it into existing systems without compromising safety or functionality.

    An auxiliary card is mounted at the center of the board, providing additional functionality and enhancing the board’s overall capabilities. This modular design allows for easy upgrades and modifications to meet evolving operational needs.

    The IS200AEPCH1ABC supports a variety of connections, including two female connectors for FPGA and other integrated circuits, facilitating seamless integration with a wide range of control systems. It also includes essential components like capacitors, resistors, diodes, and transistors for reliable signal processing and system control.
