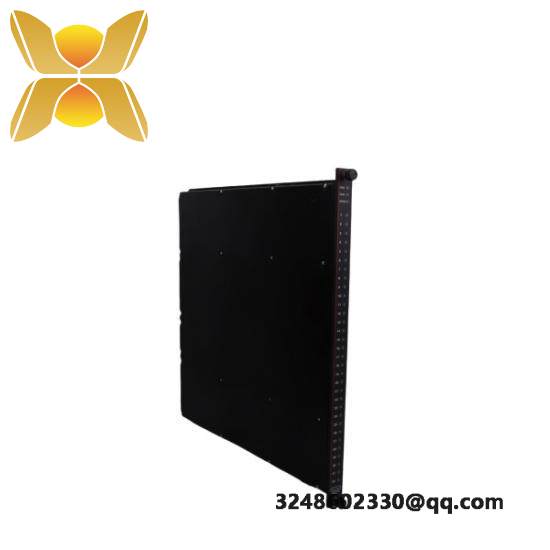

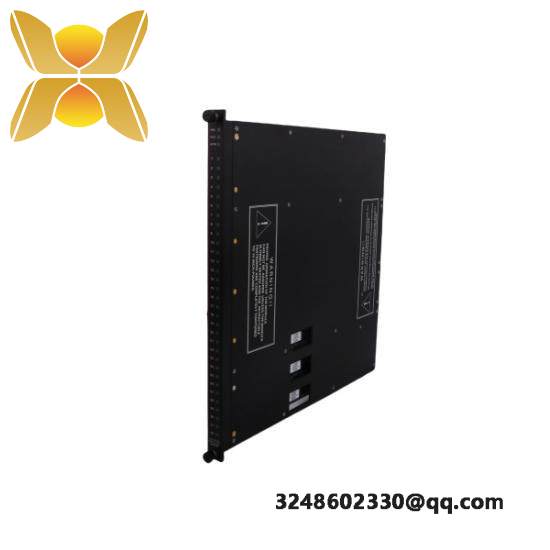

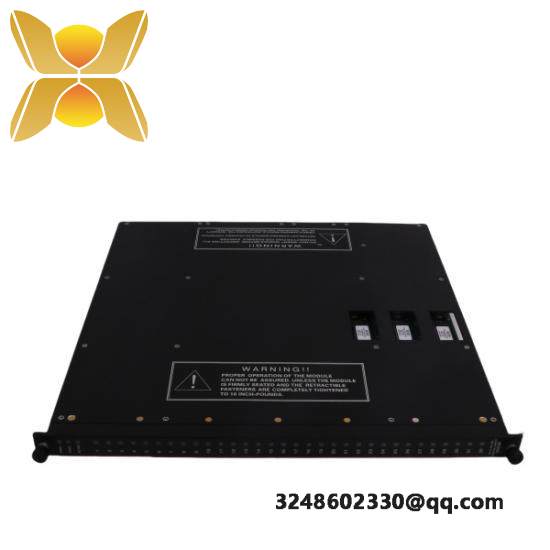

Invensys Triconex 3503E Pulse Input – Advanced Control Module for Industrial Automation

Input Type:Pulse Input

Maximum Inputs:16 channels

Signal Range:0 to 20 mA, 4 to 20 mA

Power Supply Voltage:12 to 36 VDC

Operating Temperature:-40°C to +85°C

Relay Output:2 x 1 A @ 250 VAC/DC

Communication Protocol:MODBUS RTU, Ethernet

Safety Rating:SIL 3, PESO

    The Invensys Triconex 3503E Pulse Input Module is engineered for critical applications where reliability and precision are paramount. Its robust design ensures continuous and accurate signal processing under varying environmental conditions.

    Featuring a wide operating temperature range from -40°C to +70°C, this module can withstand extreme environments commonly found in industrial settings, making it suitable for a broad spectrum of process control scenarios.

    Equipped with a communication interface that supports RS485, the 3503E facilitates efficient data exchange and interoperability with other components in the system, enhancing overall system performance.

    With its triple module redundancy, the Invensys Triconex 3503E ensures fail-safe operations, reducing downtime and minimizing risks associated with single-point failures. This feature is particularly beneficial in safety-critical applications where system availability is essential.

    The module’s high signal processing accuracy, combined with its ability to handle a maximum pulse frequency of 20 KHz, makes it ideal for applications requiring fast response times and high precision, such as flow measurement, position sensing, and process monitoring.
