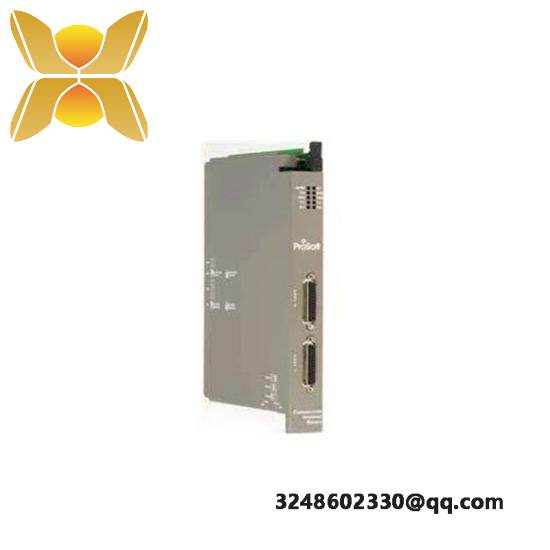

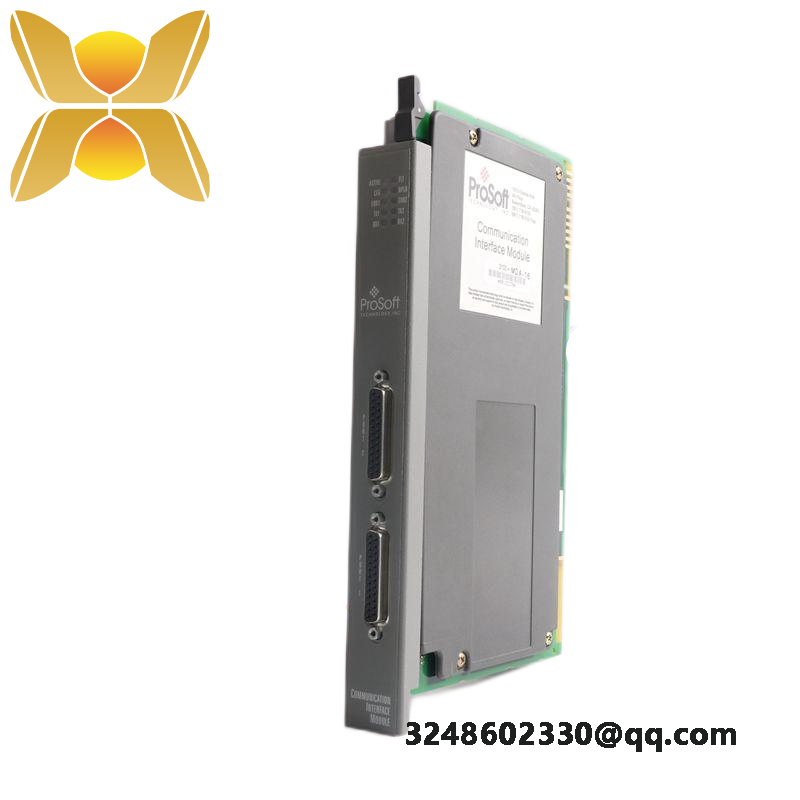

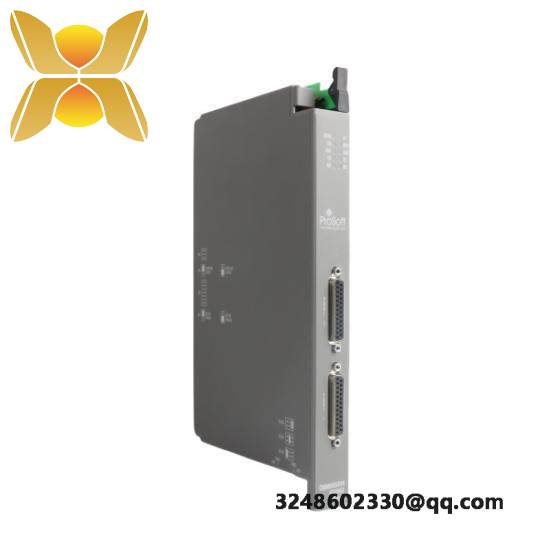

ProSoft 3100-MDA16 Interface Module – High Performance Networking Solution for Industrial Controls

Model Number:ProSoft 3100-MDA16

Type:Interface Module

Communication Protocol:Modbus

Supported Baud Rates:300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

Operating Voltage:10-30 VDC

Power Consumption:<2W

Operating Temperature Range:-40°C to +85°C

Storage Temperature Range:-40°C to +85°C

Humidity Range:5% to 95% RH, non-condensing

Dimensions:Width: 100mm, Height: 50mm, Depth: 30mm

Weight:0.3kg

    The ProSoft 3100-MDA16 Interface Module is designed for high-performance networking in industrial control systems. It enables efficient data transfer between module and processor through its internal web server, which provides access to product documentation, module status, diagnostics, and firmware updates. This module features a 4-character, alphanumeric, scrolling LED display that shows status and diagnostic information in plain English, eliminating the need for complex error or alarm code interpretation.

    Equipped with ProSoft Discovery Service (PDS) software, this module can be easily located on the network and assigned a temporary IP address, facilitating rapid setup and integration. Additionally, the personality module utilizes a non-volatile, industrial-grade Compact Flash (CF) card for storing network and module configuration, allowing for quick field replacement in case of any issues, without losing critical settings.

    With the increasing adoption of the PROFIBUS DPV1 protocol in industrial markets, the ProSoft 3100-MDA16 Interface Module supports a wide array of applications across various industries including power and distribution, petrochemicals, water and gas, and SCADA and DCS systems. Its robust design ensures reliable operation under extreme environmental conditions, making it an indispensable component in modern industrial automation solutions.
