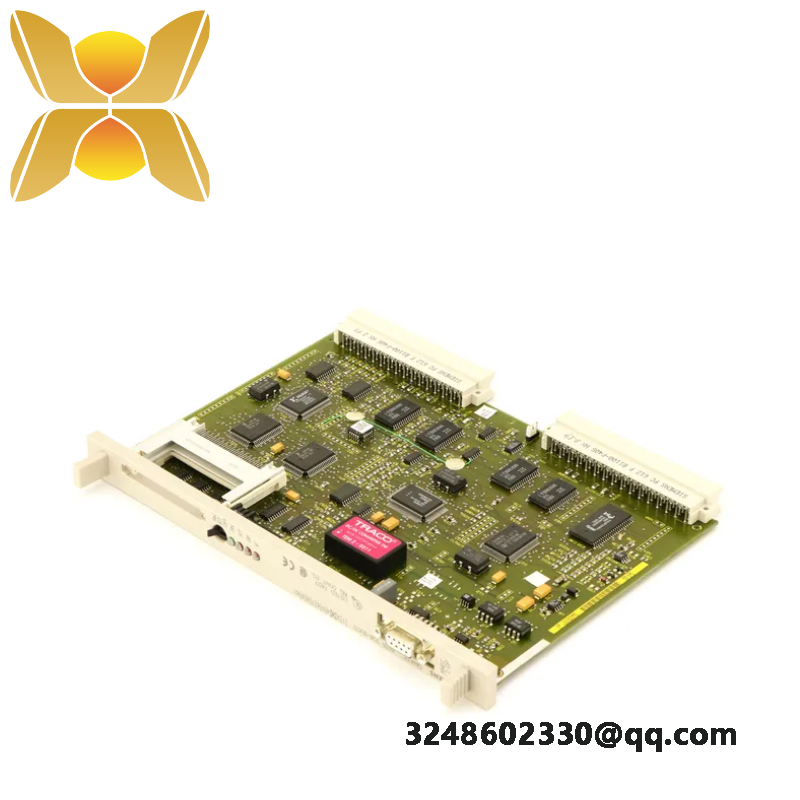

SIEMENS 6ES5308-3UC11 – Modular Control Module for Extended Networking

Operating Voltage:230V / 460V

Communication Interface:RS-485 / DeviceNet / Profibus

Maximal Data Rate:600 Hz

Signal Level:TTL / RS-232 / RS-485

Power Consumption:Less than 1 W

Environmental Conditions:Operating Temperature: -25°C to +60°C; Storage Temperature: -40°C to +85°C

Enclosure Type:IP20

Dimensions:W: 96 mm x D: 100 mm x H: 113 mm

Weight:Approx. 220 g

    The SIEMENS 6ES5308-3UC11 is a cutting-edge solution for industrial environments requiring extensive communication between remote control units and central systems. It supports a variety of communication protocols including DeviceNet, Profibus, and Ethernet, making it highly versatile for different applications.

    This module is specifically engineered to enhance network reliability and efficiency by providing robust data transfer over long distances, up to 3000 meters, without the need for repeaters. It seamlessly integrates with SIMATIC S5 series PLCs, optimizing performance and reducing installation complexity.

    With its durable and compact design, the 6ES5308-3UC11 is capable of operating within a wide temperature range (-25°C to +60°C), making it suitable for demanding industrial settings. Its low power consumption ensures minimal energy usage, contributing to overall cost savings and sustainability.

    The inclusion of a built-in EMI filter further enhances signal integrity, protecting against electrical noise and interference. This feature is crucial in maintaining stable communication in environments with high electromagnetic activity.

    For ease of integration, the module offers flexible connection options through cable connectors and three terminating resistors. This design simplifies installation and maintenance, ensuring a smooth operational experience throughout the lifecycle of the system.
