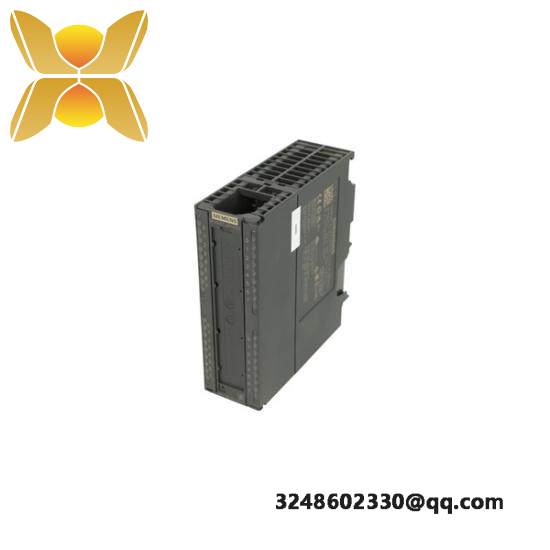

Siemens 6ES7 322-1BL00-0AA0: High-Performance Digital Output Module

Product Lifecycle (PLM):PM300: Active

Net Weight (kg):0.339 Kg

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Model Type:SIMATIC S7-1500

Model Number:6ES7522-1BL01-0AB0

Manufacturer:SIEMENS

Additional Information:HF digital output module with 32×24 V DC/0.5 A HF; 32 channels in groups of 8; 4 A per group; Single-channel diagnostics; Substitute value: Front connector (screw terminals or push-in) to be ordered separately

    The Siemens 6ES7 322-1BL00-0AA0 Digital Output Module is engineered for seamless integration into complex industrial automation systems. Its robust design ensures reliable performance under demanding conditions, making it ideal for applications requiring precise control and efficiency.

    Featuring a source output configuration (PNP) with a maximum current rating of 0.5A across 8 channels, this module offers a versatile solution for various control tasks. Its P-channel switching type allows for direct connection to PNP-type sensors or actuators.

    Equipped with comprehensive diagnostic features, the module provides real-time monitoring of critical parameters such as short-circuit to L+ and ground, as well as wire break detection, ensuring system integrity and minimizing downtime.

    Crafted with precision, the module boasts a compact size of 3.54 x 2.36 x 1.34 inches and weighs 0.143 lbs, making it easy to install in tight spaces without compromising on functionality.

    With its advanced specifications and user-friendly design, the Siemens 6ES7 322-1BL00-0AA0 Digital Output Module is the perfect choice for professionals seeking a high-quality, reliable, and efficient solution for their industrial automation projects.
