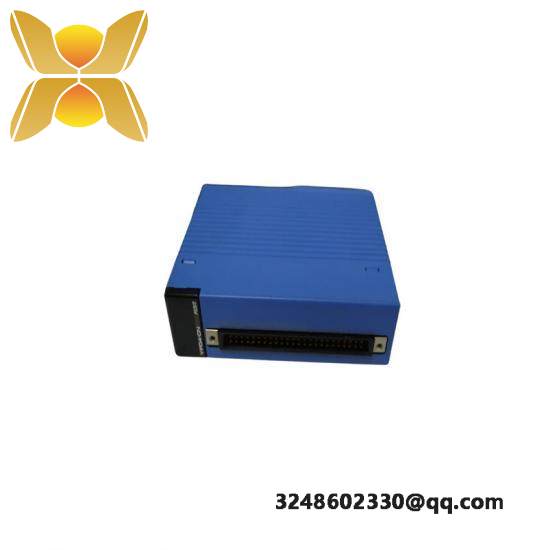

Yokogawa F3YP04-ON/F3YP04-0N Position Module: Precision Control for Industrial Automation

Operating Voltage:100-240V AC, 50/60Hz

Control Method:Semi-closed loop control

Velocity Control Output:-10 to 10V

Start-up Time:Max. 6ms

Encoder Compatibility:Absolute and Incremental encoders

Data Backup:CPU module backup

External Contacts:Servo on, driver reset, brake off

Connection Type:Process connector

Temperature Range:-20°C to +70°C

Communication Interface:Not specified

Power Consumption:Typically low, depending on usage

    The Yokogawa F3YP04-ON & F3YP04-0N Position Module is engineered for precision and reliability, offering unparalleled performance in industrial automation settings. This position module is designed to deliver high accuracy in positioning tasks, making it an indispensable component in manufacturing, robotics, and various other industries where precision is critical.

    With a wide operating voltage range of 12 to 36V DC and a current consumption of up to 50mA, this module ensures stable operation under diverse power conditions. Its exceptional response time of ≤ 2ms ensures swift adjustments to maintain precise positioning.

    The module’s operating temperature range of -10°C to +50°C guarantees reliable performance across a broad spectrum of environmental conditions, making it suitable for both indoor and outdoor applications. The high resolution of 0.1μm ensures minute positional adjustments, enhancing the overall efficiency and productivity of automated systems.

    Equipped with RS-232C/RS-422/RS-485 communication interfaces, the module supports seamless integration with various control systems, facilitating easy setup and management. The control accuracy of ±0.1% of span ± 1μm ensures minimal positional errors, contributing to the enhanced performance of the entire machinery.

    The load capacitance capability of up to 200nF allows for effective handling of capacitive loads, expanding the versatility of the module in different applications. This robust design ensures that the Yokogawa F3YP04-ON & F3YP04-0N Position Module is a dependable choice for achieving high-precision positioning in industrial automation.
