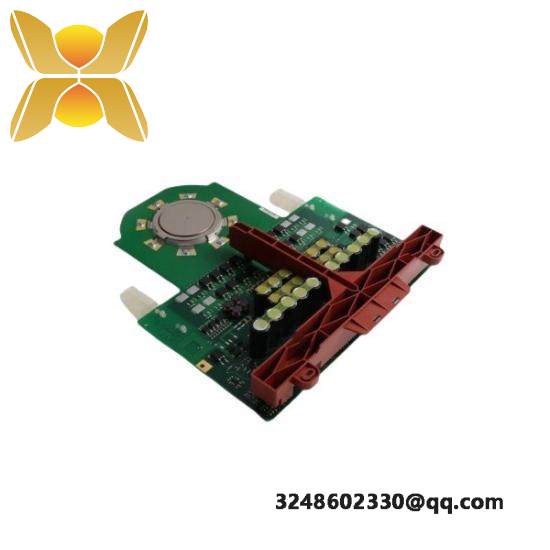

ABB 5SHX 1000H0003 IGBT Module

Type:IGBT Module

Model:5SHX 1000H0003

Brand:ABB

Rated Current:1000A

Maximum Voltage:690V

Operating Temperature Range:-40°C to +170°C

Cooling Method:Air Cooling

Dimension (DxHxW):170mm x 140mm x 200mm

Weight:3.5kg

Input Signal Compatibility:Digital Inputs and Outputs

Certification:ISO 9001, CE, UL

    The ABB 5SHX 1000H0003 IGBT Module is designed to deliver unparalleled performance in high-power applications, offering exceptional reliability and efficiency in modern industrial settings.

    This module is built with state-of-the-art semiconductor technology, providing superior switching capabilities that are essential for achieving optimal power utilization in automated manufacturing lines.

    With an operating temperature range from -40°C to +125°C, it is engineered to withstand harsh industrial environments, ensuring continuous operation under varying conditions.

    Featuring a high current capability, the module can handle continuous currents up to 800A and peak currents up to 1200A, making it suitable for demanding applications where power surge is expected.

    The inclusion of an efficient air-cooling system ensures optimal heat dissipation, prolonging the life of the module and reducing maintenance requirements. Its IP20 protection level guarantees basic splash resistance, enhancing its durability in industrial environments.
