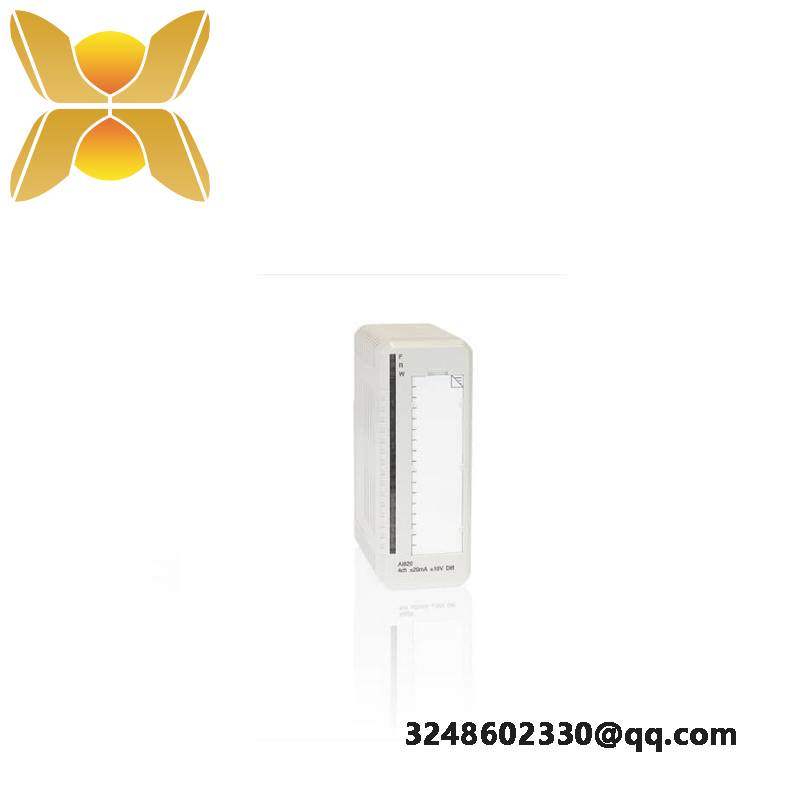

ABB AI820 3BSE008544R1 – 4-Channel Analog Input Module

Number of Channels:4

I/O Voltage, DC:10 V

I/O Voltage, AC:N/A V

I/O Current, DC:20 mA

I/O Current, AC:N/A mA

A/D Resolution:14 bit

Rated Insulation Voltage:50 V

Power Dissipation:3.5 W

Weight:0.23 kg

Dimensions😀 x H x W (mm)

:102 x 19 x 45

Module Type:AI820

    Engineered for industrial strength and precision, the ABB AI820 3BSE008544R1 module is an essential component for advanced control systems. Its robust 4-channel analog input capability supports a wide range of industrial applications, from process control to machine monitoring.

    This module boasts a high 12-bit resolution, providing exceptional accuracy in data acquisition. It is specifically designed for applications requiring precise measurement and control, ensuring reliable performance under various operational conditions.

    Featuring individual galvanic isolation for each channel, this module ensures complete electrical separation, minimizing interference and enhancing system stability. Its compact design allows for efficient integration into tight spaces without compromising functionality.

    The ABB AI820 3BSE008544R1 operates within a broad temperature range (-25°C to +60°C), making it suitable for diverse industrial environments. Its durability and reliability are further enhanced by the use of high-quality materials and robust construction techniques.

    Installation and maintenance are simplified with its user-friendly interface and standardized connection options. This module is compatible with a wide array of ABB PLC systems, ensuring seamless integration and ease of use for technicians and engineers alike.
