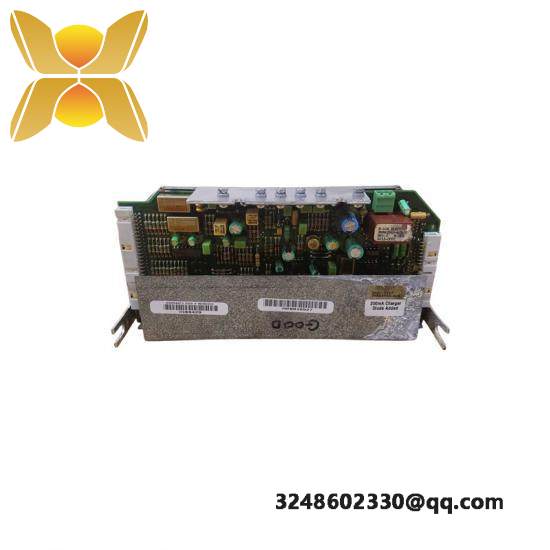

ABB DSQC 245 Serial Measurement Board

Model:DSQC 245

Manufacturer:ABB

Type:Serial Measurement Board

Operating Voltage:24 VDC

Current Consumption:12 mA max

Input Signals:16 digital inputs, 8 digital outputs

Output Signals:8 digital outputs, 4 analog outputs

Communication Interface:RS-232/RS-485

Dimensions:104mm x 44mm x 22mm

Weight:40g

    Unleash the power of real-time data acquisition with the ABB DSQC 245 Serial Measurement Board. Designed for seamless integration into a variety of industrial automation environments, this advanced module ensures accurate measurement and reliable data transmission, crucial for optimizing manufacturing processes and enhancing operational efficiency.

    Featuring two high-resolution analog inputs, the DSQC 245 allows for precise readings across a wide range of environmental conditions, making it suitable for applications requiring stringent accuracy. The board supports both RS-232 and RS-485 interfaces, offering flexibility in communication protocols.

    With a sampling rate of up to 1 kHz, the DSQC 245 captures rapid changes in process variables, ensuring that no critical data is missed. Its robust digital output capabilities provide up to four channels of 24 Vdc, facilitating control actions based on acquired data.

    Engineered for durability, the DSQC 245 operates within a temperature range of -20°C to +60°C, ensuring reliability in various industrial settings. Moreover, its low power consumption minimizes energy usage, making it an eco-friendly solution for data acquisition.

    For ease of use, the ABB DSQC 245 comes with comprehensive documentation and support resources, enabling quick setup and integration into existing systems. Its compatibility with ABB‘s comprehensive suite of automation software further enhances its utility, providing a streamlined approach to managing industrial processes.
