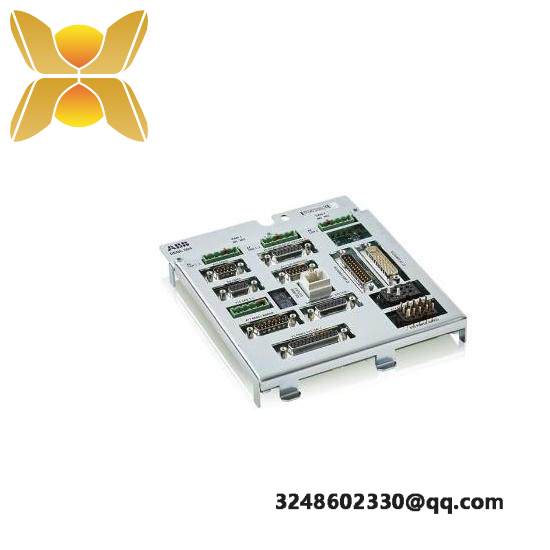

ABB DSQC504 Panel Board – Industrial Control Solutions

Operating Voltage:24V DC

Output Frequency:Up to 10 kHz

Number of Inputs:8 Digital Inputs

Number of Outputs:8 Digital Outputs

Communication Interface:RS-232 / RS-485

Dimensions:120mm x 120mm x 60mm

Weight:0.2kg

    The ABB DSQC504 Panel Board boasts an innovative design that ensures reliable performance in demanding industrial environments. Its compact size makes it highly versatile, suitable for integration into various control panels without occupying too much space.

    Equipped with 16 digital inputs and outputs, this module allows for precise control over a wide range of industrial processes, enhancing productivity and efficiency. The dual-channel analog input and output capabilities provide flexibility for complex signal processing tasks.

    Featuring robust communication interfaces, the DSQC504 enables seamless connectivity with other ABB devices and third-party systems, ensuring a cohesive automation solution. Its ability to operate within a broad temperature range (-25°C to 60°C) and withstand high humidity levels (up to 95% RH) ensures reliable performance under various environmental conditions.

    Engineered with a focus on energy efficiency, the DSQC504 consumes a maximum of 3.2 watts, reducing operational costs and environmental impact. The integrated power management system further optimizes energy usage, contributing to sustainable industrial practices.

    Designed with user convenience in mind, the ABB DSQC504 Panel Board offers easy setup and configuration through intuitive software tools. It supports a wide variety of programming languages, facilitating customization to meet specific application requirements.
