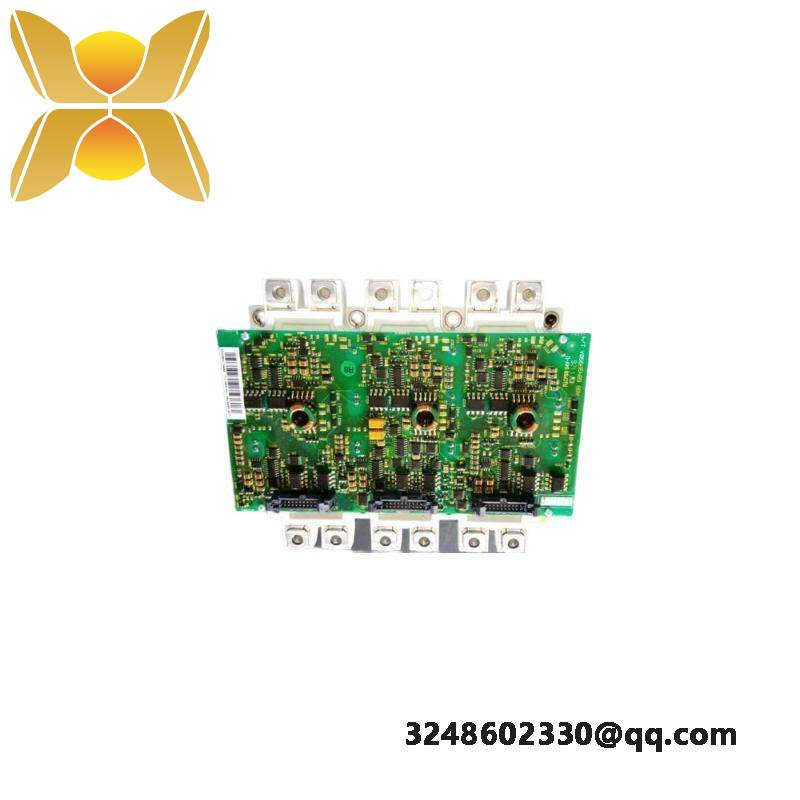

ABB FS225R12KE3/AGDR-71C: High-Power IGBT Module

Manufacturer:ABB

Model Number:FS225R12KE3/AGDR-71C

Module Type:IGBT

Power Rating (kW):225

Peak Current (A):1200

Operating Temperature Range:-40°C to +150°C

Cooling Method:强迫风冷

Insulation Resistance (MΩ):≥500

Certification:CE, UL

Dimensions (WxHxD):300mm x 200mm x 120mm

Weight (kg):10.5

Operating Voltage (V):DC 600V to DC 1700V

Operating Frequency (kHz):0 to 150kHz

Control Interface:RS485, CANopen

    Engineered for peak performance, the ABB FS225R12KE3/AGDR-71C IGBT Module ensures seamless integration into complex industrial systems, providing unmatched reliability and efficiency.

    Featuring advanced water-cooling technology, this module maintains optimal operating temperatures, ensuring longevity and reliability even under the most demanding conditions.

    With its wide operating temperature range and IP20 environmental protection class, this IGBT Module is suitable for a variety of industrial environments, enhancing operational flexibility and robustness.

    Designed with ease of integration in mind, the module supports various control signal protocols including RS-485 and CANopen, facilitating compatibility with existing automation systems.

    Ideal for applications requiring precise motor control and efficient power conversion, the ABB FS225R12KE3/AGDR-71C IGBT Module stands as a cornerstone for modern industrial automation, driving innovation and productivity.
