Module Type:Digital I/O Module
Operating System Compatibility:ABB ControlLogix, A-B PLC Systems
Maximum I/O Channels:32 channels (16 input, 16 output)
Signal Handling:Analog and digital signal processing capabilities
Power Supply:12-24V DC
Communication Interfaces:DeviceNet, EtherNet/IP
Operating Temperature Range:-25°C to +70°C
Dimensions:109.6mm x 101.6mm x 15.6mm
Weight:0.27kg

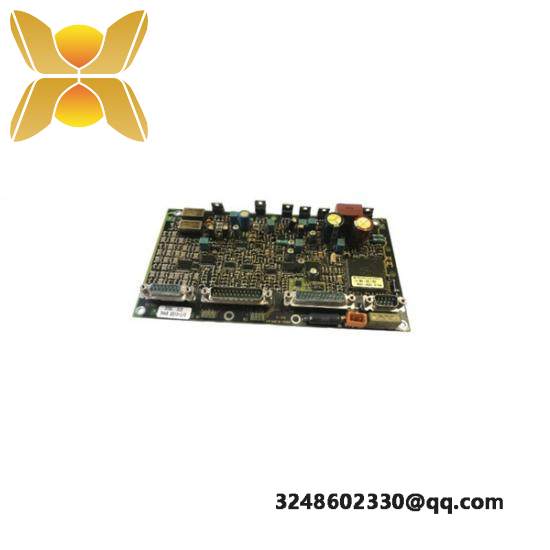

The ABB SMB DSQC 313 3HAB2213-1 Measurement Meß Board is a robust and versatile high-precision analog input module designed for seamless integration into complex industrial automation systems. It provides eight dedicated channels for precise measurements, catering to applications requiring high accuracy in temperature, pressure, and flow rate monitoring.
With an exceptional resolution of 12 bits and a wide input range from -10V to +10V, this module ensures reliable and accurate data acquisition under varying conditions. Its high sampling rate of up to 1 kHz supports real-time monitoring without compromising on precision.
Featuring an accuracy of ±0.01% Full Scale (FS), this module delivers unparalleled performance, making it suitable for critical applications where even slight deviations could impact system efficiency and safety. The low power consumption of 1.5 W ensures efficient operation while minimizing energy costs.
Operable within an expansive temperature range of -25°C to +85°C, the ABB SMB DSQC 313 3HAB2213-1 Measurement Meß Board is built to withstand harsh industrial environments, ensuring continuous and dependable performance. The device is equipped with a DeviceNet communication interface, facilitating easy connectivity and integration with other ABB and third-party automation components.
The compact yet sturdy 10-pin connector type allows for quick and secure installation, reducing downtime during setup or maintenance procedures. The board’s dimensions of 89mm x 48mm make it compatible with various enclosure designs, ensuring a seamless fit in existing automation setups.
