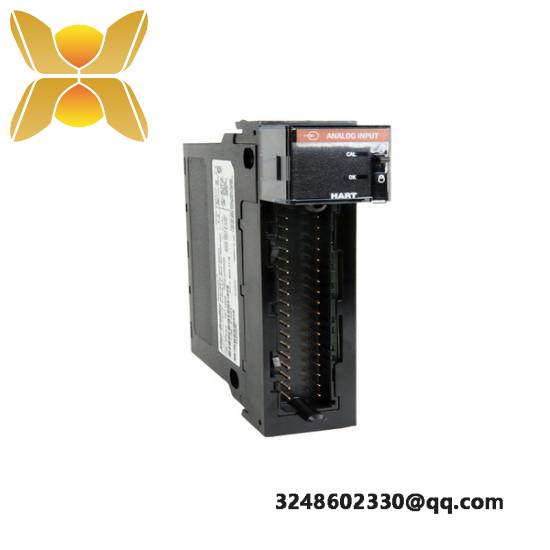

Allen-Bradley 1756-IF16H ControlLogix Analog Input Module: Precision Data Acquisition for Industrial Automation

Model Type:Analog Input Module

Model Number:1756-IF16H

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Channels:16

Input Range:Voltage or Current

Data Formats:Choice of three

Communication Speed:Up to 10/100 Mbps

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:6.2 Watts

Isolation Voltage:Continuous 30 V

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Applicable

    The Allen-Bradley 1756-IF16H is engineered for seamless integration into complex industrial control systems, offering high accuracy and reliability in data acquisition.

    Each channel is equipped with a robust filter, ensuring clean signal processing even under challenging environmental conditions.

    With its versatile input range selection, this module caters to diverse applications requiring either differential voltage or current inputs.

    Supporting multiple data formats, users can customize their system configuration to meet specific needs, enhancing flexibility and efficiency.

    Equipped with an Ethernet/IP Bridge, the module facilitates fast and reliable communication, optimizing data flow within industrial networks.

    Designed for durability, the open-type enclosure ensures longevity in harsh industrial settings, while the continuous isolation voltage safeguards against electrical interference.
