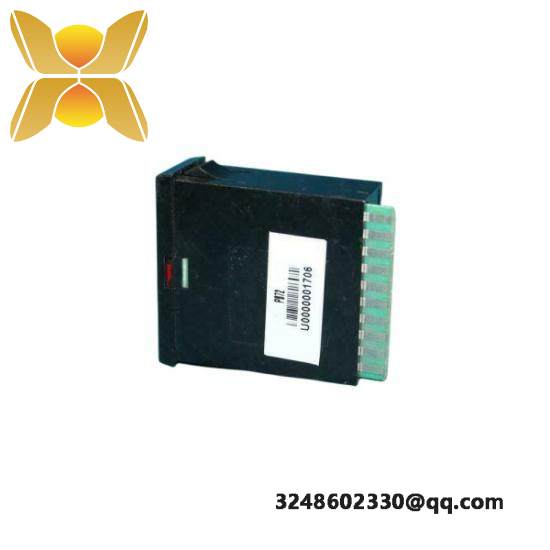

Asahi Keiki AP-102-13-11 Micro Isolation Transmitter

Model:AP-102-13-11

Terminal Type:Micro

Signal Source:DC

Isolation Type:Optical

Input Range:-20 to +60V

Output Range:0 to 10V, 4 to 20mA

Accuracy:±0.1%

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Power Consumption:1W max

Supply Voltage:DC 9 to 36V

Dimensions (WxHxD):32mm x 54mm x 33mm

Weight:45g

    The ASAHI KEIKI AP-102-13-11 is a high-performance, terminal type micro DC signal isolation transmitter, engineered for seamless integration into a variety of industrial control applications. This compact device ensures reliable and accurate data transmission, crucial for maintaining operational efficiency and precision.

    Equipped with optical isolation technology, the transmitter effectively prevents interference and enhances system reliability, even under harsh environmental conditions. It supports both 0 to 10V and 4 to 20mA output ranges, offering flexibility in connecting to different types of sensors and actuators.

    With an input range of -20 to +60V, it can handle a wide variety of signals without degradation or distortion. Its ±0.1% accuracy ensures minimal error in data conversion, making it ideal for critical applications where precision is paramount.

    Operating within a temperature range of -20°C to +70°C, this transmitter is designed to withstand extreme environments commonly encountered in industrial settings. Additionally, its storage temperature capability of -40°C to +85°C allows for robust performance in various stages of deployment.

    The ASAHI KEIKI AP-102-13-11 consumes a maximum power of 1W, ensuring energy efficiency. It accepts a supply voltage of DC 9 to 36V, providing versatility in powering the device from diverse sources. Measuring just 32mm x 54mm x 33mm, the transmitter’s compact size facilitates easy installation in space-constrained areas.

    Weighing only 45g, it is lightweight and portable, making it suitable for both fixed installations and portable monitoring systems. Its combination of size, weight, and performance makes the ASAHI KEIKI AP-102-13-11 an indispensable component in modern industrial automation.
