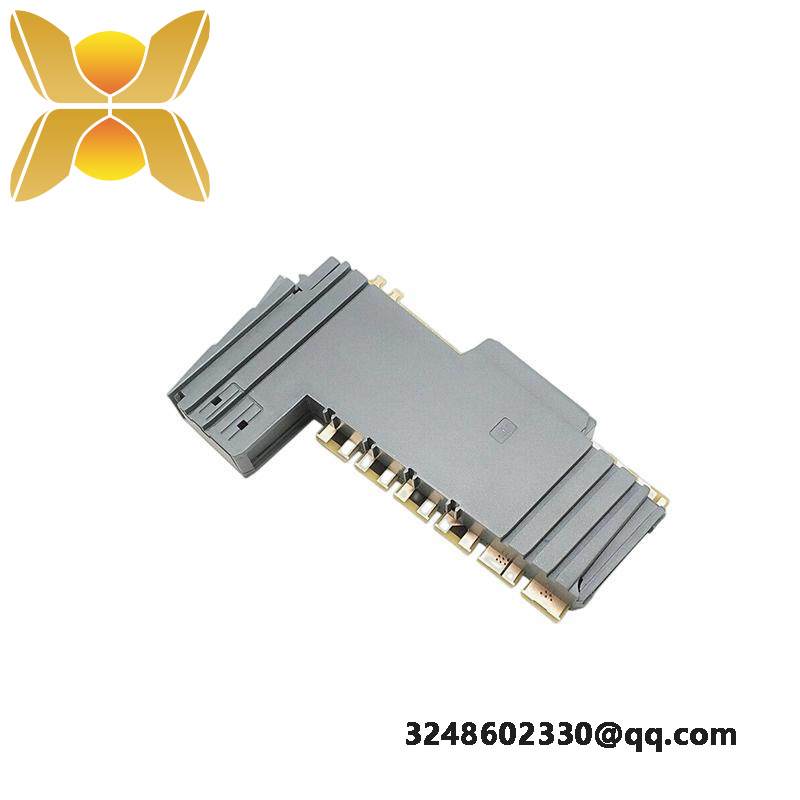

B&R X20BT9100 – LINK BUS TRANSMITTER, Industrial Automation Components

Extended Product Type:Other

Product ID:X20BT9100

B&R Type Designation:Other

Product Function:X2X Link bus transmitter

Purpose:For seamless expansion of the system

Maximum Segment Length:Up to 100 m

I/O Supply:Feed for internal I/O

X2X Link Supply:Integrated for the X67 system

Operation:Operation only on the slot to the far right

Power Consumption:Bus: 0.5 W

Input Voltage Range:24 VDC -15% / +20%

Input Current:Max. 0.5 A

Nominal Output Voltage:24 VDC

Permissible Contact Load:10 A

    Introducing the B&R X20BT9100 LINK BUS TRANSMITTER, the perfect solution for industrial automation enthusiasts seeking seamless integration and reliable data transfer within their systems. This innovative module is engineered to enhance the scalability and efficiency of your existing infrastructure.

    Featuring an X2X Link bus transmitter with integrated I/O and X67 system supplies, the B&R X20BT9100 ensures uninterrupted communication across extended distances, making it an indispensable addition to any industrial control environment.

    Operate with confidence knowing that this module supports only the slot positioned farthest to the right, ensuring a clean and organized setup that aligns with your system’s architecture. Its power consumption of just 0.5W for the bus and 24VDC input voltage range (-15% / +20%) cater to energy-efficient operations, while its nominal output voltage of 24VDC provides stable power to your devices.

    With a permissible contact load of 10A, the B&R X20BT9100 is built to withstand the demands of high-performance applications. It’s not just about functionality; the compact design of 11 x 6 x 6.7 cm and lightweight 0.14kg make it easy to integrate into various settings without compromising on space or ease of use.

    Experience peace of mind with the self-check function and security code protection of setpoints, which safeguard your configurations against unauthorized access and errors. The B&R X20BT9100 also includes a low battery voltage alarm, ensuring timely maintenance and uninterrupted operation.
