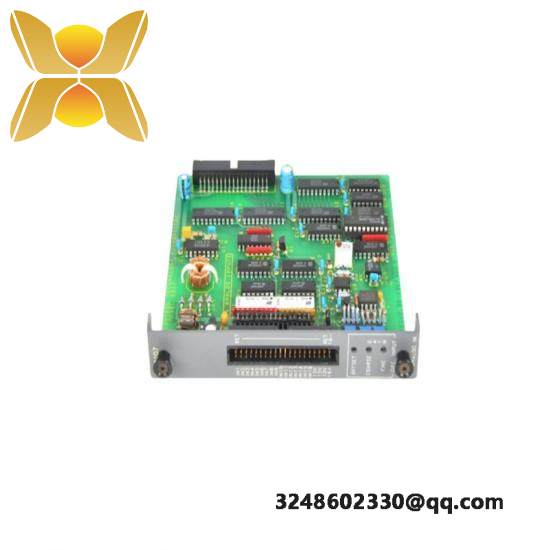

CTC CTC 2207 16-Channel Analog Input Module

Number of Channels:16

Sampling Rate:500 Hz

Signal Range:-10 V to +10 V

Accuracy:+/- 0.05%

Operating Temperature:-40°C to +85°C

Communication Interface:Modbus TCP/IP

Power Consumption:≤ 10 W

Enclosure Rating:IP65

Material:Aluminum alloy

Dimensions (WxHxD):100 mm x 90 mm x 75 mm

Weight:0.4 kg

    The CTC CTC 2207 16-Channel Analog Input Module is designed for seamless integration into complex industrial control systems, ensuring reliable and accurate data acquisition across a wide range of applications. With its robust design and high sampling rate, this module is ideal for monitoring and controlling processes in environments where precision and reliability are paramount.

    Equipped with 16 high-precision analog input channels, each capable of measuring voltages within the industrial range, this module offers exceptional resolution and sensitivity, making it suitable for applications requiring detailed analysis and control. The 12-bit ADC provides high-resolution readings, essential for high-accuracy applications.

    Operated over a temperature range from -40°C to +85°C, the CTC 2207 is designed to withstand extreme environmental conditions, ensuring continuous performance even in harsh industrial settings. Its low power consumption of ≤ 1.5 W ensures efficient energy use without compromising on performance.

    For communication, the module utilizes an RS-485 interface compatible with MODBUS RTU protocol, enabling seamless data exchange with other devices in the network. This feature enhances the module’s flexibility and compatibility with various industrial automation systems.

    In terms of physical dimensions, the CTC 2207 measures 120mm x 100mm x 30mm, fitting compactly into existing control panel layouts without compromising on functionality. Its lightweight design (0.2kg) makes installation straightforward and minimizes the overall system load.
