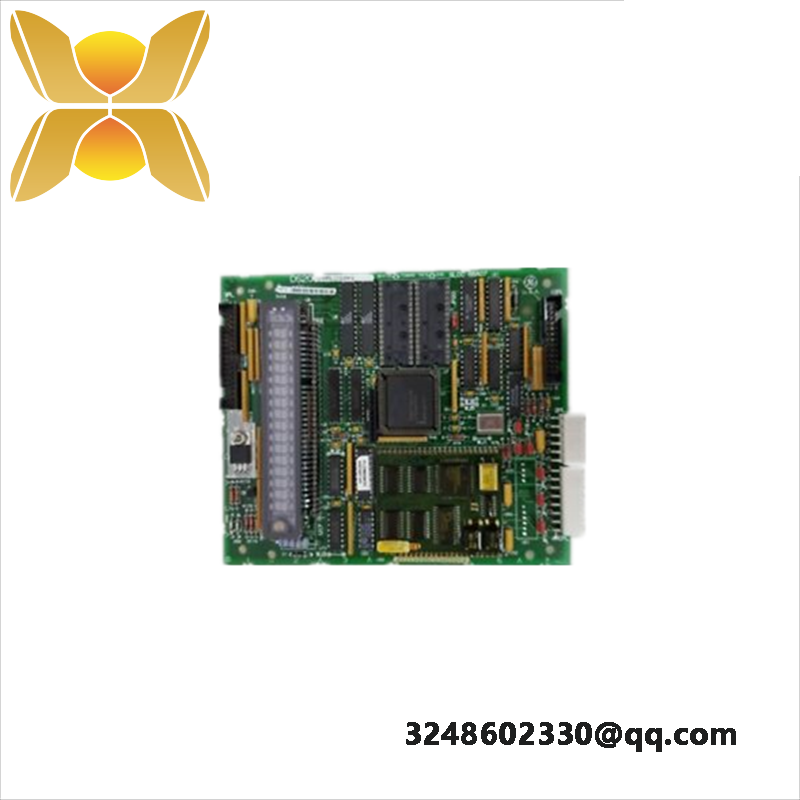

GE DS200TCQFG1ACC: Advanced Analog I/O Extender Board, Designed for Industrial Control Applications

Board Type:Analog I/O Extender

Model Number:DS200TCQFG1ACC

Series:Mark VI

Manufacturing Year:2023

Dimensions (W x H x D):178 x 101.6 x 76.2 mm

Weight:0.46 kg

Power Supply Voltage:24V DC

Operating Temperature Range:-20°C to +55°C

Input Current Range:4-20 mA

Output Voltage Range:0-10 V

Communication Protocol:RS-485

Jumpers Count:7

Connectors Count:4

Connector Types:[“34-pin”,”9-pin”,”50-pin x 2″]

    The GE DS200TCQFG1ACC board is meticulously engineered for high-reliability and performance in demanding industrial environments. Its robust design ensures seamless integration into existing control systems, enhancing operational efficiency.

    Featuring 8 channels of 12-bit resolution, this board delivers precise analog measurements, crucial for accurate process control in various industrial sectors including manufacturing, energy, and automation.

    With support for both RS-485 and Ethernet connectivity, the DS200TCQFG1ACC offers flexible communication options, enabling real-time data exchange and remote monitoring capabilities.

    Engineered to withstand harsh conditions, the board operates within a wide temperature range, from -20°C to +70°C, ensuring reliability across diverse geographical locations.

    Efficient power management keeps consumption low, optimizing system resources and reducing operational costs. The compact size and lightweight design facilitate easy installation and maintenance in space-constrained environments.
