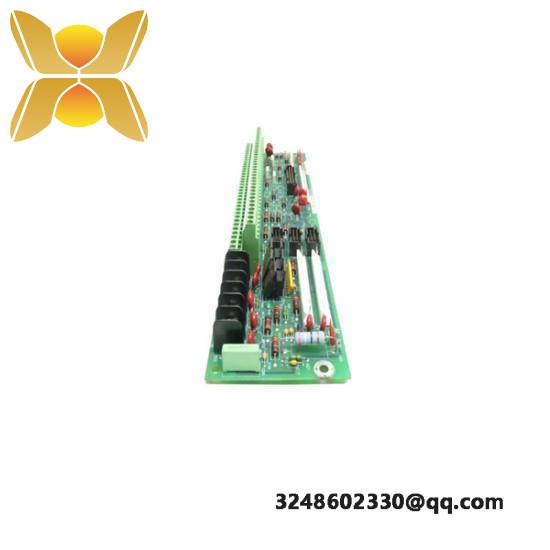

General Electric FANUC DS200PTBAG1B – Terminal Board for Advanced Industrial Control Solutions

Number of Terminal Blocks:2

Signal Wires Capacity:72 per terminal block

Connectors:3 x 10-pin (JJR, JJT, JJS)

Signal Wire Posts:6

Dimensions:Not specified

Performance Revision History:A-rated product revisions

    The GE FANUC DS200PTBAG1B Termination Board is a critical component in industrial control systems, designed to enhance signal termination capabilities and improve overall system reliability.

    Featuring 2 terminal blocks with 72 signal wires each, it ensures robust signal management, crucial for applications requiring high data throughput and accuracy.

    Equipped with 3 versatile 10-pin connectors, the board supports a wide range of connection requirements, facilitating easy integration with other system components.

    The inclusion of terminal posts for 6 signal wires further optimizes connectivity and signal quality, ensuring that your industrial control system operates efficiently under demanding conditions.

    This board is specifically compatible with GE‘s Mark V series drives and exciters, providing seamless integration and compatibility, thus enhancing the system’s performance and longevity.
