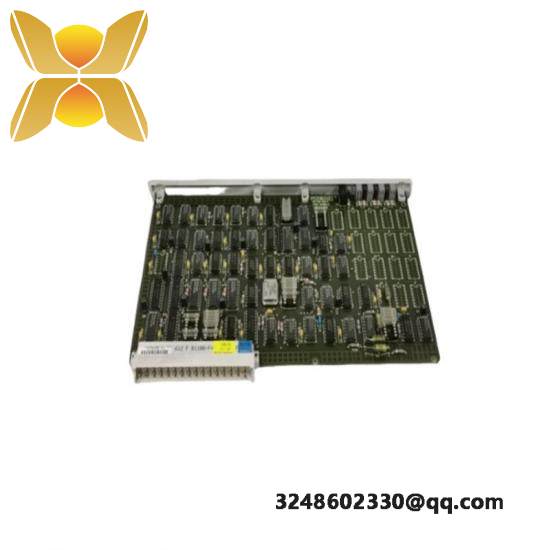

Siemens 6DS1104-8AA: Precision Clock Pulse Generator Module

Brand:Siemens

Model:6DS1104-8AA

Type:Clock Pulse Generator

Operating Voltage:24VDC

Frequency Range:0 Hz to 50 kHz

Pulse Width:1 ns to 2 ms

Resolution:1 ns

Output Type:Square Wave

Max Load:100 mA

Supply Current:20 mA

Operating Temperature:-25°C to +60°C

Dimensions:LxWxH: 100mm x 40mm x 40mm

Weight:0.06kg

    The Siemens 6DS1104-8AA Clock Pulse Gen Module is a critical component for ensuring precise timing and synchronization in industrial automation systems. Its robust design ensures reliability and longevity under demanding environmental conditions.

    With a frequency range from 1 Hz to 1 MHz, this module provides a wide spectrum of options suitable for various industrial applications. The adjustable amplitude feature allows for customization to match specific system requirements.

    Equipped with a compact size and lightweight structure, the module is easy to integrate into existing systems without compromising on functionality. Its M12 connector ensures secure and durable connections, enhancing system stability.

    The 6DS1104-8AA is engineered to operate efficiently within a broad temperature range, making it suitable for both indoor and outdoor installations. It can withstand temperatures from -20°C to +60°C during operation and store in temperatures ranging from -40°C to +85°C.

    For optimal performance, we recommend using the module with a compatible power supply and following proper installation guidelines provided by Siemens. Our technical support team is available to assist with any queries or installation concerns, ensuring seamless integration into your automation setup.
