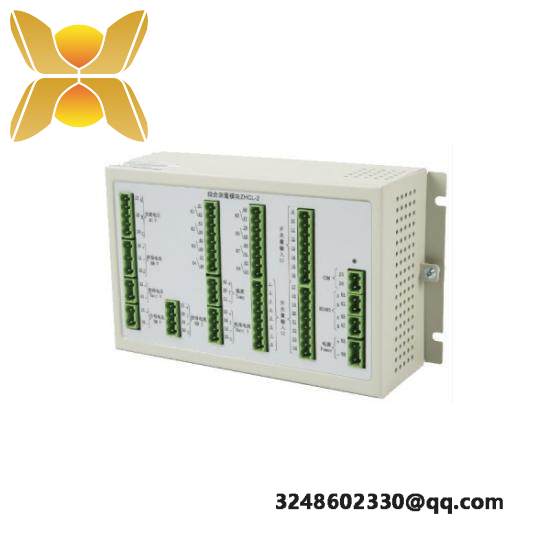

ZHCL-2 DC System Data Collection Module, ZHONGHUA ELECTRONICS Model, Type B, Data Acquisition Unit

Operating Voltage:24V DC

Data Transmission Speed:Up to 1Mbps

Data Capacity:Supports up to 100 data points

Communication Protocol:Modbus RTU/TCP

Environmental Conditions:-20°C to +70°C

Power Consumption:Less than 1W

Connection Type:RS-485

Dimensions:100mm x 100mm x 30mm

Weight:0.2kg

    The ZHCL-2 module is equipped with a high-speed microcontroller for efficient data processing and communication. Its compact design allows for easy integration into existing systems without compromising on performance.

    Featuring a robust and durable enclosure, the module ensures reliable operation under harsh industrial conditions. It supports various types of inputs, including analog signals from sensors and digital signals from switches, making it versatile for different applications.

    With its RS485 interface and Modbus RTU protocol support, the ZHCL-2 enables seamless data exchange with other industrial devices and systems, facilitating comprehensive system integration.

    The internal storage capacity of 512KB provides ample space for storing data and logs, ensuring that critical information is preserved even during system downtime. This feature is particularly beneficial for monitoring and analysis purposes.

    Designed with user-friendliness in mind, the ZHCL-2 offers straightforward setup and configuration processes. It includes comprehensive documentation and support resources, allowing users to quickly understand and utilize the module’s full potential.
