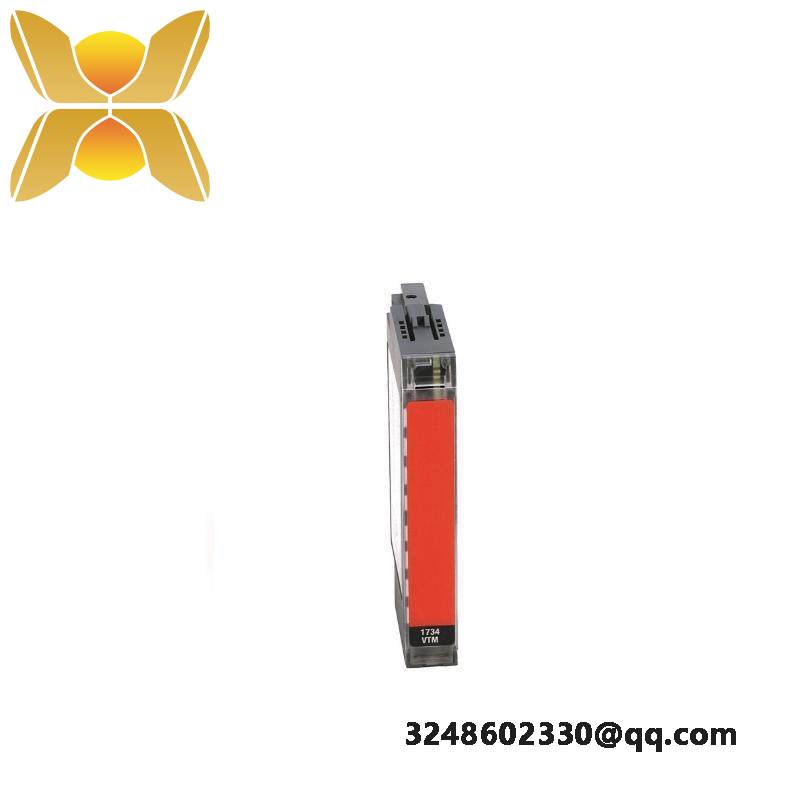

AB 1734-VTM: Precision I/O Voltage Terminal Module

Module Type:Voltage Measurement

Operating Range:0-24V DC

Accuracy:+/- 0.1% of reading

Resolution:0.01V

Input Impedance:50kΩ

Environmental Rating:IP20

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (WxHxD):17mm x 14mm x 4mm

Weight:0.02kg

Power Supply:Internal 5VDC

    The ABB AB 1734-VTM POINT I/O Voltage Terminal Module is engineered to enhance precision and efficiency in industrial control applications. This compact, yet robust module seamlessly integrates into complex automation systems, providing accurate voltage measurements under varying environmental conditions.

    Featuring a wide operating voltage range, it ensures reliable performance across different industrial settings. With its ability to measure currents up to 20mA per channel, this module caters to diverse monitoring needs in manufacturing processes.

    Equipped with advanced accuracy technology, the module ensures readings within ± 0.1% of the measured value plus 2 least significant bits (LSBs), making it an ideal choice for applications requiring high-level precision.

    Designed for durability, the ABB AB 1734-VTM is suitable for operation within a temperature range from -25°C to +60°C and can withstand storage temperatures between -40°C to +70°C, ensuring reliable performance even in extreme conditions.

    With its compact size of 80mm x 80mm x 44mm and lightweight design, the module optimizes space utilization on control panels without compromising functionality. Its straightforward installation process and compatibility with ABB’s comprehensive automation ecosystem make it an efficient addition to any industrial automation setup.
