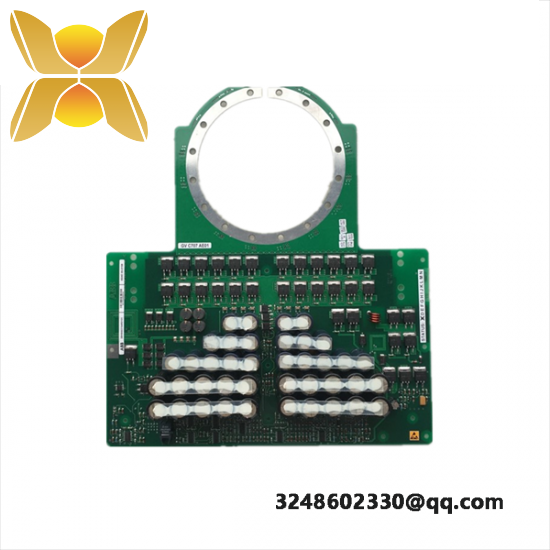

ABB 3BHB002481R0001: Advanced USC329 AE01 IGCT Module

Type:IGCT Module

Model Number:USC329 AE01

Brand:ABB

Part Number:3BHB002481R0001

Voltage Rating:Up to 1600V DC

Current Rating:Up to 1600A DC

Switching Frequency:Up to 50kHz

Insulation Resistance:≥ 10MΩ @500VDC

Environmental Conditions:Temperature Range: -40°C to +85°C

Dimensions:LxWxH (mm): 180x150x100

Weight:Approx. 3.5kg

    Integrating advanced semiconductor technology, the ABB 3BHB002481R0001 USC329 AE01 module offers unparalleled performance in handling high-power applications. It is meticulously engineered for use in demanding industrial automation systems where reliability and efficiency are paramount.

    This module boasts an impressive operating voltage of up to 6.5 kV, coupled with a maximum current capability of up to 4,000 A, ensuring it can handle a wide range of power conversion tasks. Its switching frequency of up to 2 kHz enables rapid response times, critical for dynamic industrial processes.

    Crafted with precision, the module features a compact package size of 200 x 200 x 60 mm, making it suitable for space-constrained environments without compromising on performance. Its weight, approximately 4.5 kg, ensures easy handling and installation.

    For optimal heat dissipation, the ABB 3BHB002481R0001 USC329 AE01 utilizes natural convection cooling, eliminating the need for complex cooling systems. This design choice contributes to its robustness and longevity in various environmental conditions.

    Operating within a temperature range of -40°C to +70°C, this module is designed to withstand extreme conditions encountered in industrial settings. Its ability to maintain high performance under such conditions makes it a reliable choice for applications requiring exceptional durability and reliability.
