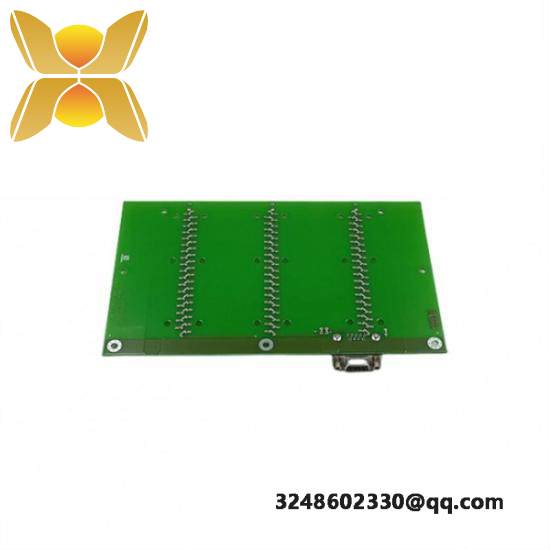

ABB 3BHE021083R0103 – High Voltage Drive Board

Operating Voltage:Up to 4000V

Current Handling Capacity:1000A

Frequency Range:40Hz – 60Hz

Protection Class:IP54

Insulation Resistance:≥ 10MΩ

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Weight:45kg

    The ABB 3BHE021083R0103 HVD BOARD is a pioneering solution for industrial automation, boasting a robust design and cutting-edge technology. This high voltage drive board is specifically engineered to enhance performance in demanding industrial environments.

    Featuring an advanced insulation class of H, it ensures exceptional reliability under high-voltage conditions. The 3000 VDC operating voltage and a current rating of 1250 A make it suitable for heavy-duty applications requiring high power and precision control.

    With support for multiple communication protocols like Ethernet/IP and Profinet, this module facilitates seamless integration with various control systems, ensuring a smooth and efficient operation across different industrial setups.

    Adopting vector control and field-oriented control (FOC) modes, the HVD BOARD optimizes motor performance, providing unparalleled control over speed, torque, and energy consumption. Its thermal conduction cooling mechanism ensures stable operation even in high-temperature environments.

    Equipped with 4-20 mA input signals and CANopen communication, the ABB 3BHE021083R0103 HVD BOARD offers versatile connectivity options, enabling precise control and monitoring of industrial processes. Designed with compact dimensions (215mm x 125mm x 110mm) and weighing just 5.2kg, it is easily integrated into existing systems without compromising on space or performance.
