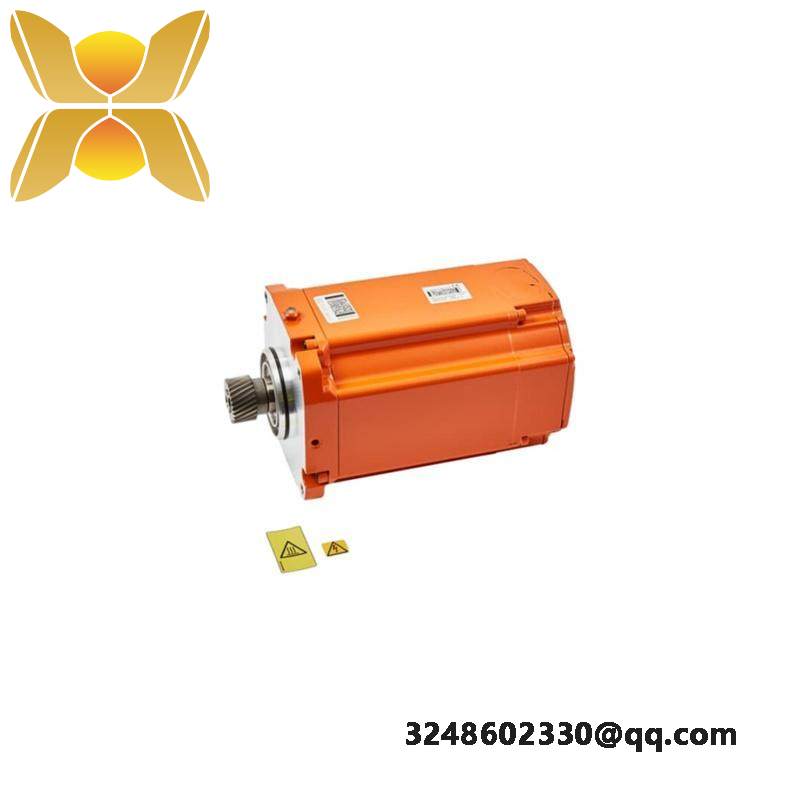

ABB 3HAC062339-004 DSQC643 3HAC024488-001: Integrated Motor & Pinion Control Module

Type:Motor Control Module

Module Type:DSQC643

Part Number:3HAC062339-004

Motor Type:Incorporated DC Motor

Pinion Type:Precision Gear Pinion

Input Voltage:220 V AC

Output Power:1.6 kW

Speed Control:Variable Speed via PWM

Motor Control Protocol:DeviceNet

Communication Interface:RS-485

Weight:2.0 kg

Dimensions (WxDxH):170x140x85 mm

Operating Temperature Range:-20°C to +60°C

    The ABB 3HAC062339-004 DSQC643 3HAC024488-001 motor is engineered to deliver exceptional performance in heavy-duty industrial applications. Its design integrates seamlessly with leading control systems, ensuring reliable operation across various industries.

    Equipped with a precision-cut pinion, this motor ensures precise alignment and reduced wear, resulting in longer service life and enhanced operational efficiency.

    Capable of handling high loads and providing a maximum torque output of 145 Nm, this motor is well-suited for applications demanding high torque delivery and fast response times.

    With an operating voltage of 380V AC, the motor is compatible with a wide range of industrial power supplies, ensuring flexibility in different environments.

    Efficient current consumption of 26 A allows for optimized energy use, contributing to cost savings and environmental sustainability. The robust construction of the ABB motor ensures durability and reliability over extended periods.
